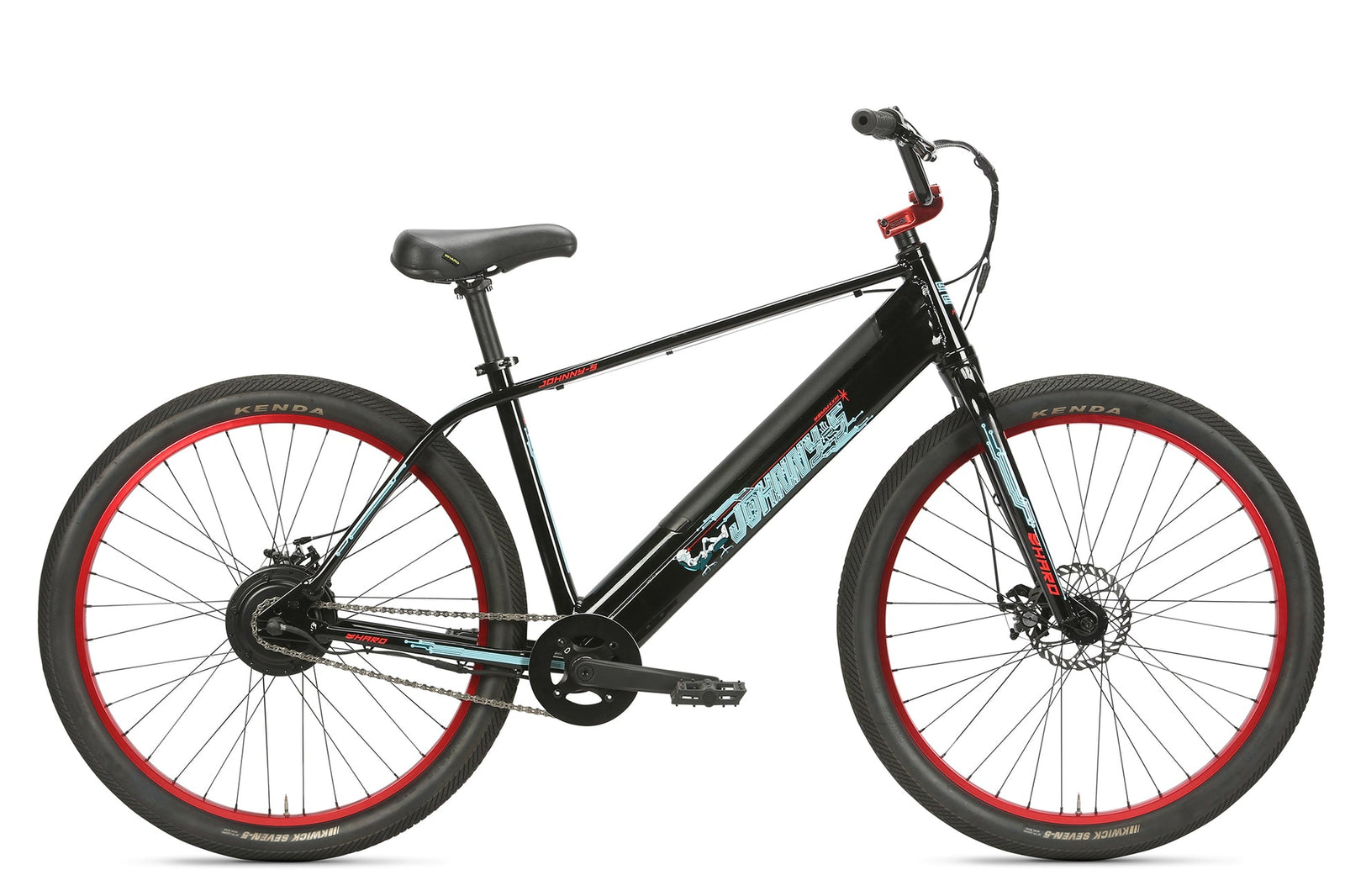

100% BMX inspired, the Johnny 5 Electric has all the big bike creature comforts with all the power to take you there. Twin top-tube aluminum frame, chromoly fork, 500W rear hub matched to a 672WH Samsung battery. 28 mile range. Hit the throttle and let the good times roll!
Features
- Full 6061 Aluminum frame with twin top tube, tapered 1-1/8" - 1-1/5" headtube, 25.4" top tube, 17.25" chain stay, 61.9° seat tube, and 67° head tube.
- Full chromoly 1-1/8" - 1-1/5" tapered, internally threaded steerer tube fork, M25 Alloy compression cap, 3/8" dropouts, and 28mm offset.

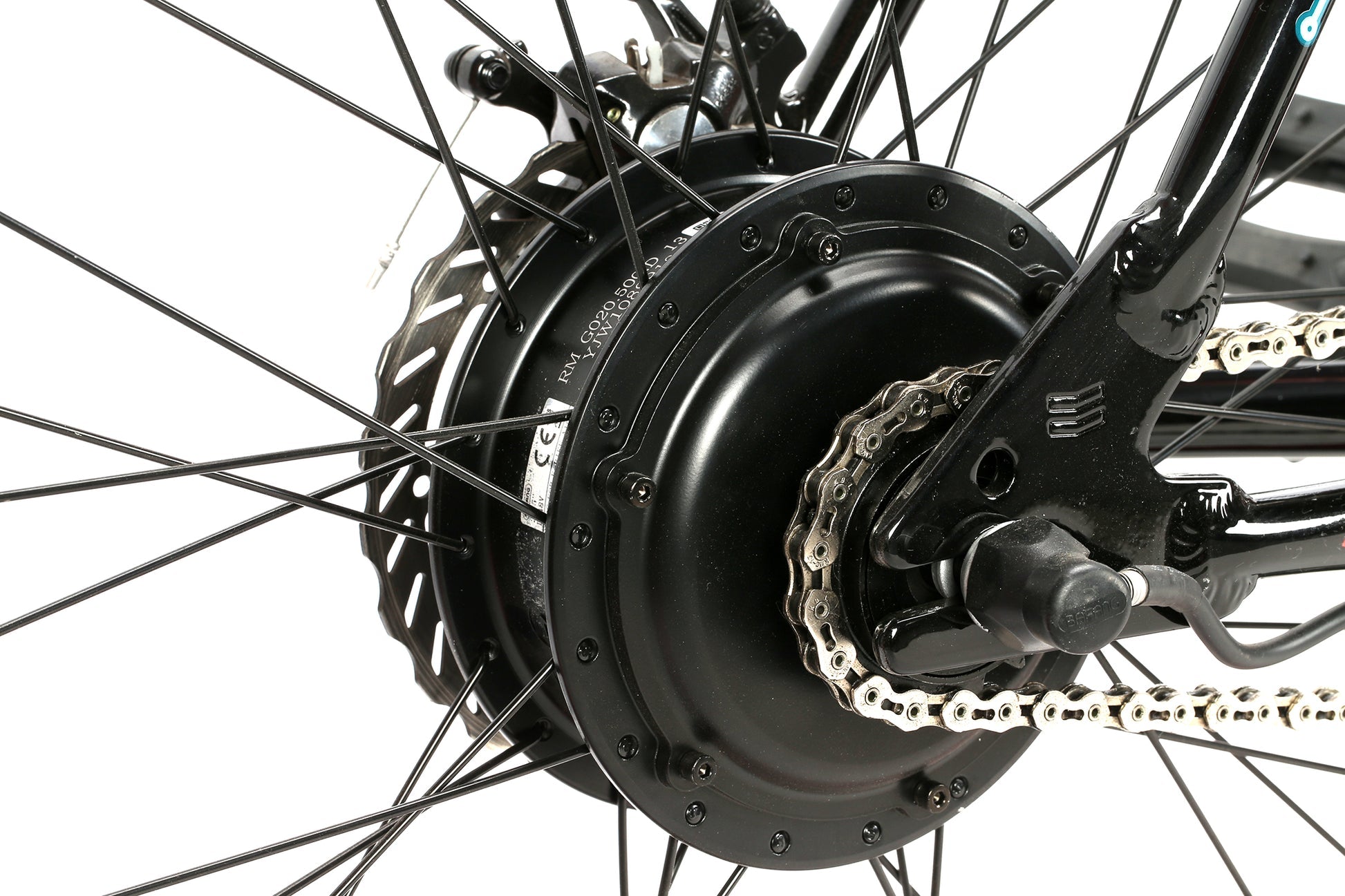

- Bafang 48V, 500W 36H, rear hub
- 672WH (48v, 14AH), 50 cell, Samsung internal down tube battery
- 28 Mile Range +/- (tested on level 2 on rolling roads)
- Five power levels, left side display

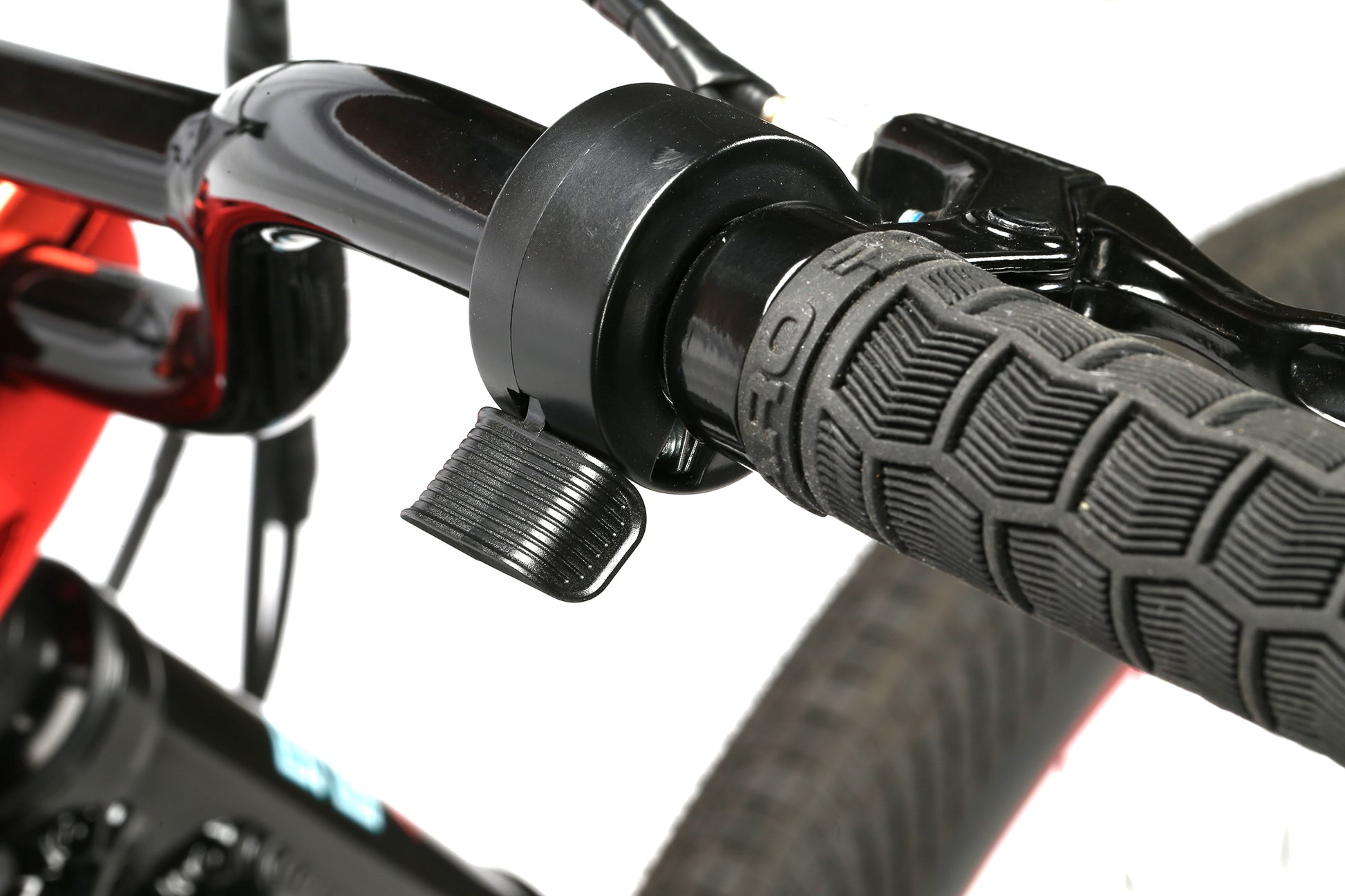

- Right side thumb throttle
- Full pedal assist
Specs & Size

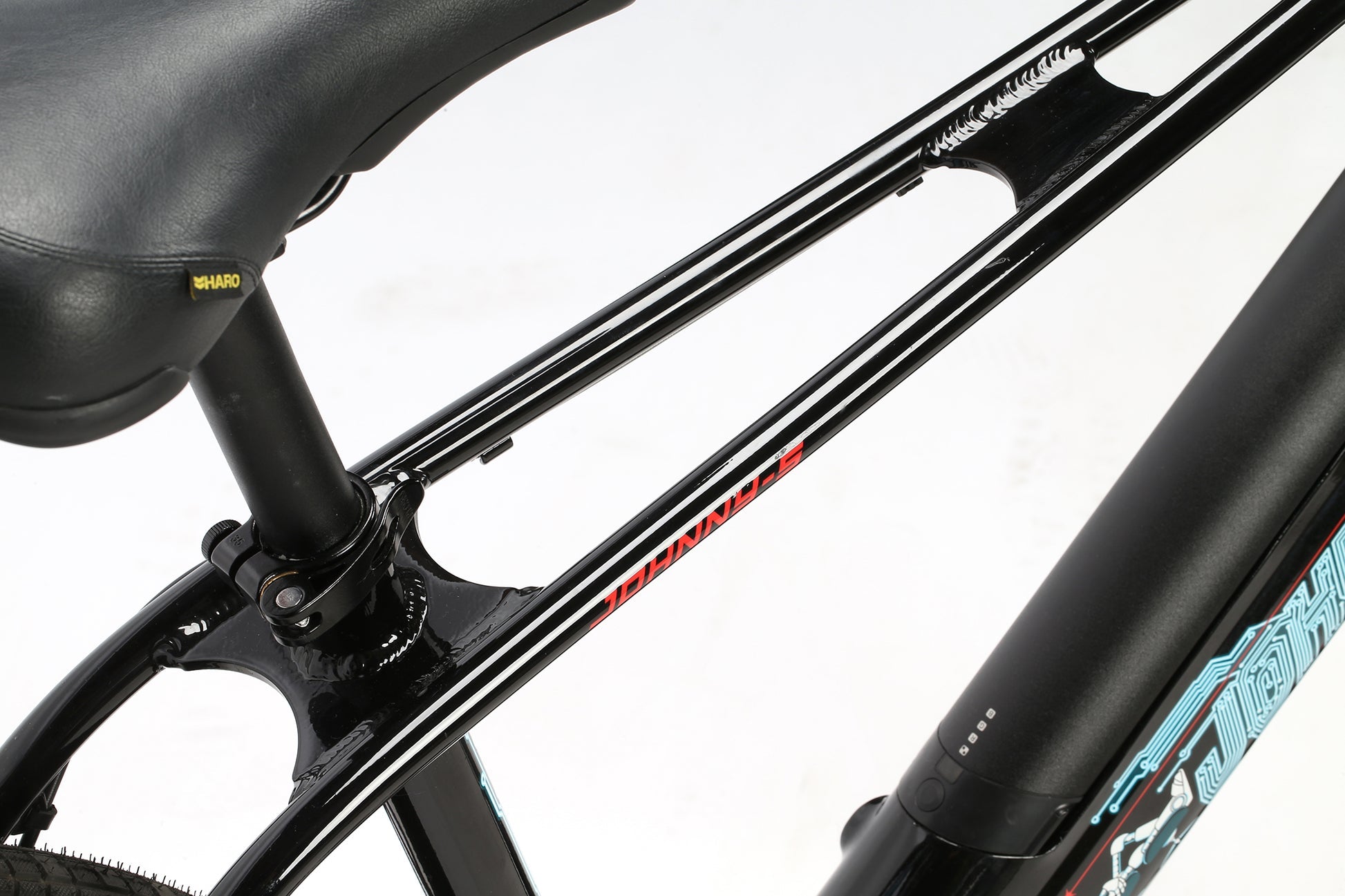

- Frame: 6061-T6 Heat-treated aluminum twin top tube frame
- Fork: Full chromoly 1-1/8" - 1-1/5" tapered fork with 3/8" dropouts
- Colors: Black
Drivetrain:
- Cranks: 3-pc hollow forged aluminum with tapered square spindle - 170mm
- Bottom Bracket: Euro square tapered pedal assist
- Sprocket: 36T Alloy Chainring with aluminum chain guard
- Gearing: 34/15
- Pedals: FPD PC 9/16"
- Chain: KMC 410 Z
- Cassette: 16T Cassette
Wheels:
- Tires: Kenda "Kwick Seven" 27.5" x 2.4"
- Front Hub: Sealed bearing, High flange, 36H female axle front hub
- Rims: 27.5" Alloy 36H, Double Wall
Braking System:
- Brake: Promax Mechanical Disc Brake, 160mm Rotor
- Brake Lever: Promax 2.5 finger
Drive Unit:
- Motor: Bafang 500W
- Battery: Internal 50 cell, 48V, 672Wh
Other Components:
- Grips: Baseline Flangeless
- Handlebar: Haro 5" Legends 2-piece bar

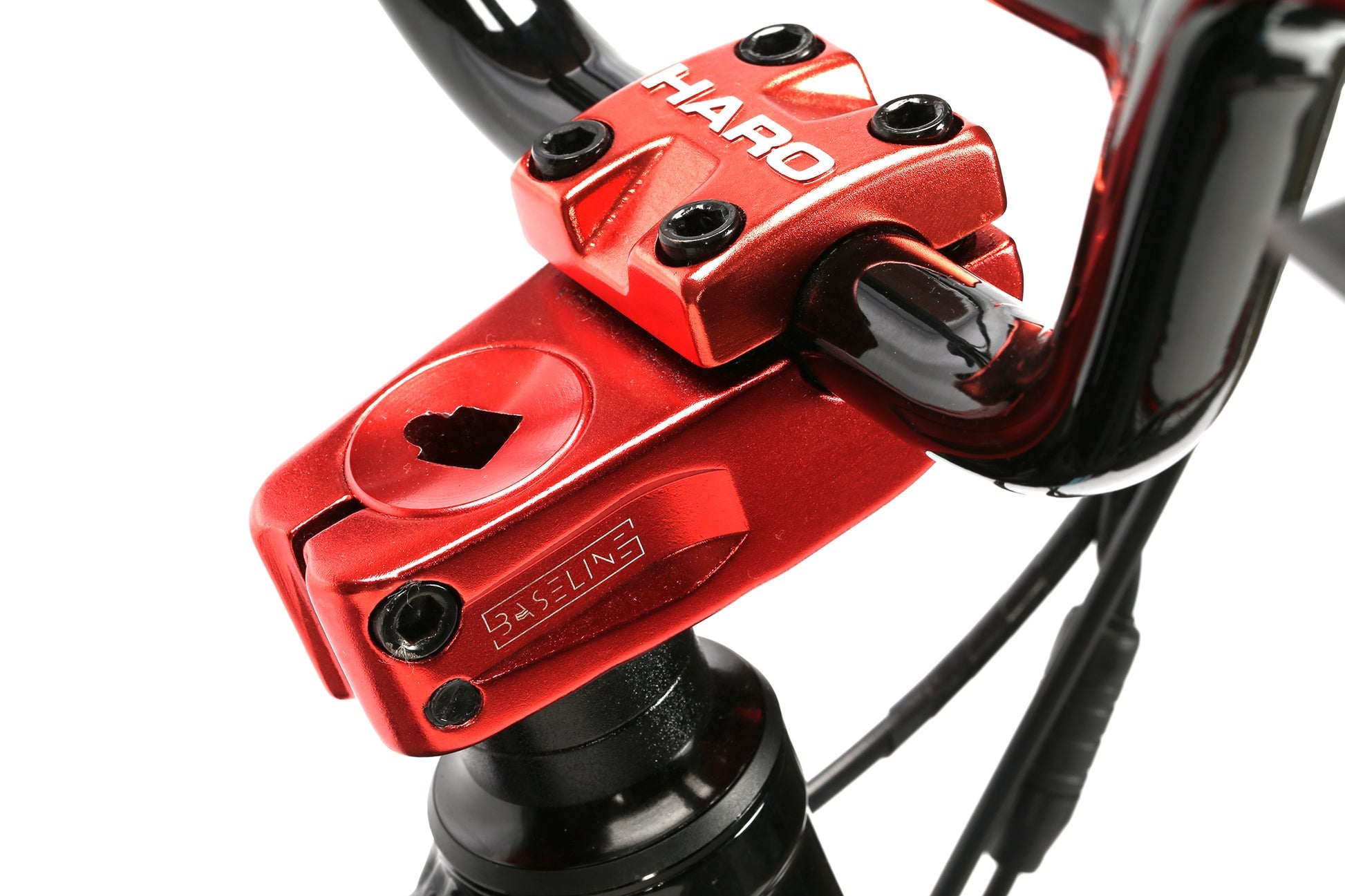

- Stem: Baseline forged 48mm reach
- Headset: FSA 1-1/8" X 1.5" Sealed Bearing
- Seat: Haro Johnny 5 saddle
- Seat Post: Alloy, 30.9 x 350mm
- Seat Post Clamp: QR Alloy, 31.8mm

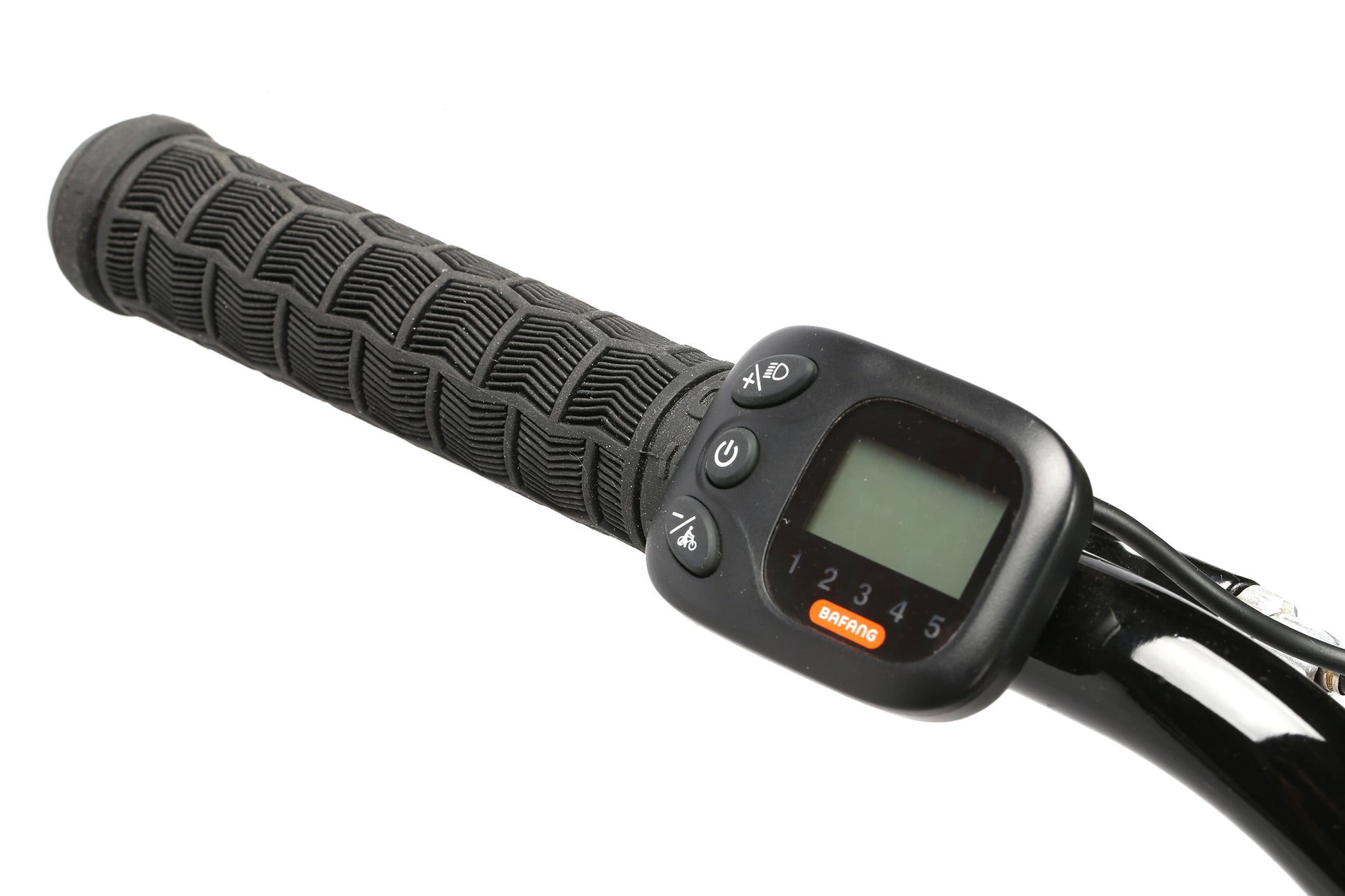

- Extras: Bafang LCD Display, 5 power settings; Thumb Throttle
Geometry
- Size: 27.5
- Head Angle: 67°
- Seat Angle: 73°
- Top Tube: 25.3" (645mm)
- Seat Tube: 17.9" (457mm)
- Chainstay: 17.25" (440mm)
- BB Height: 11.3"
-
Stand Over: 28.75" (730mm)
