Brawny XM

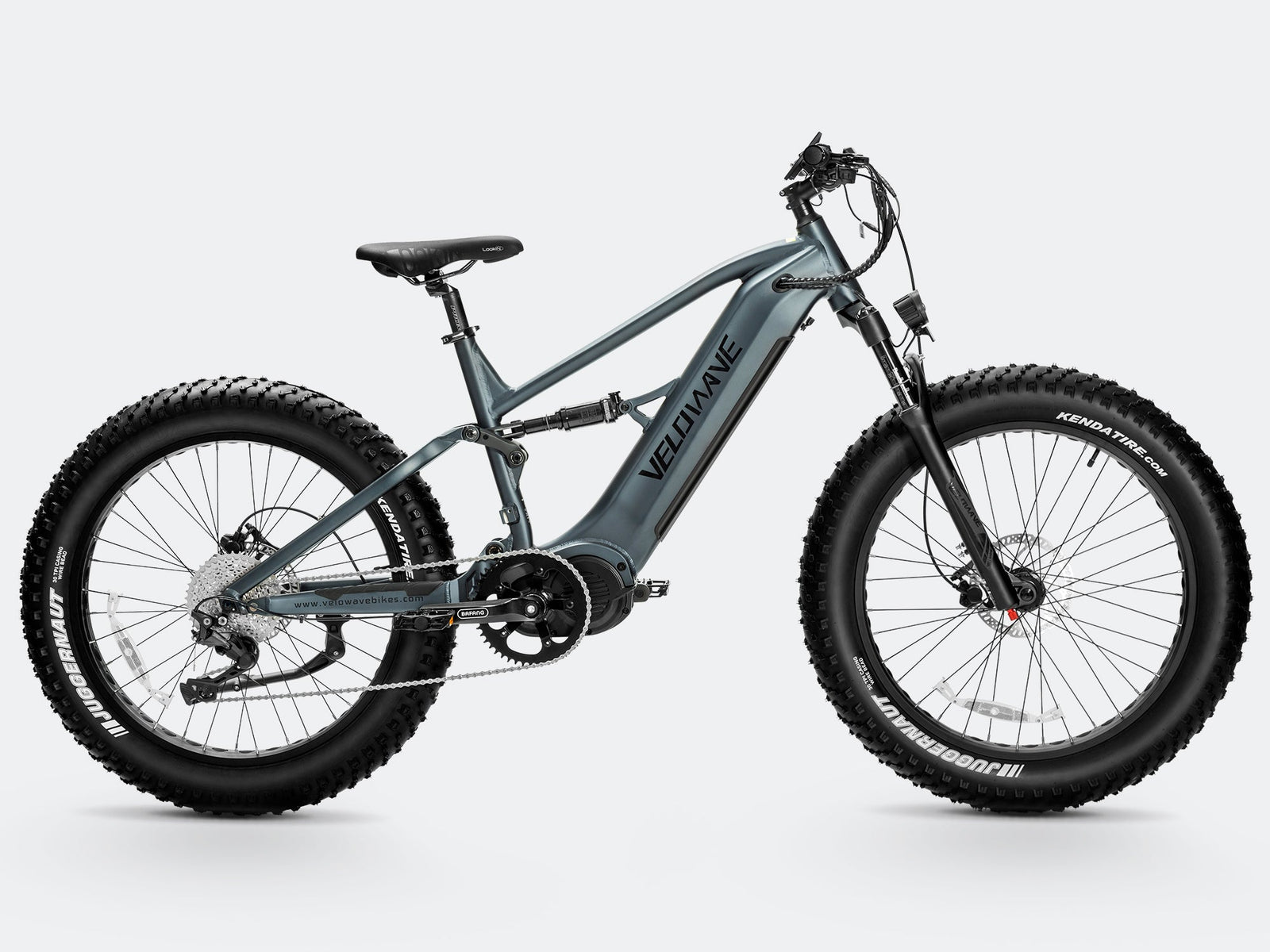

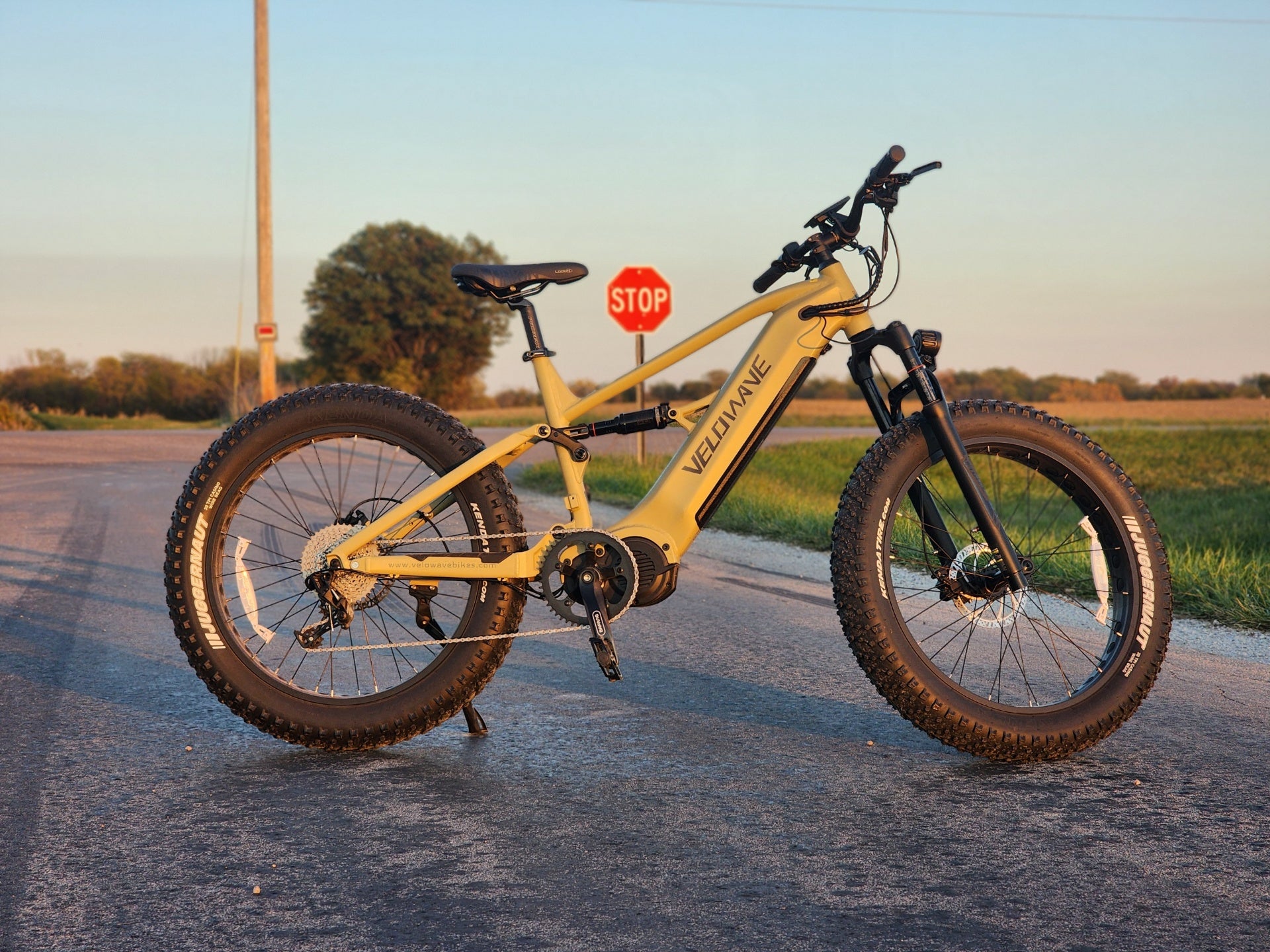

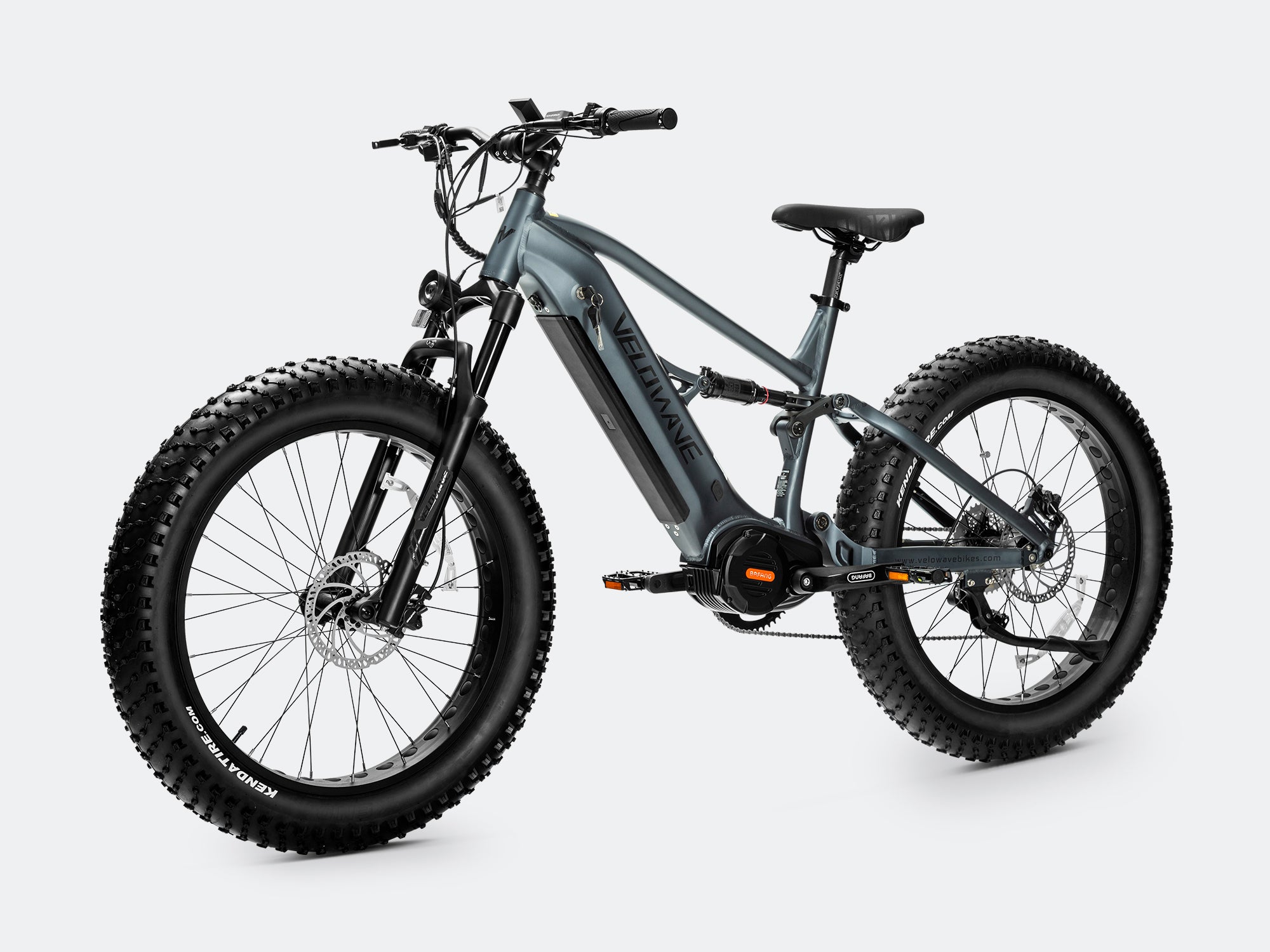

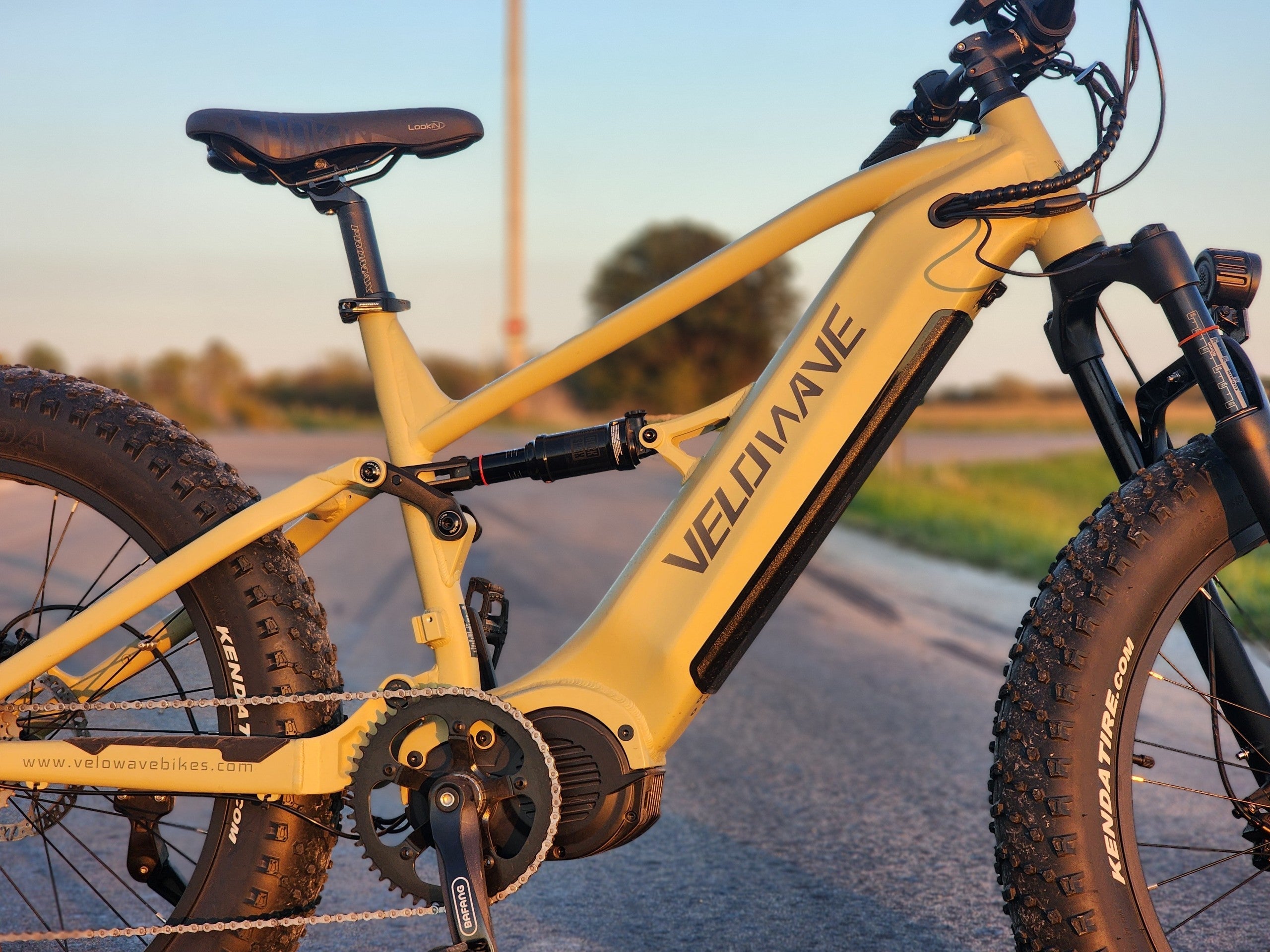

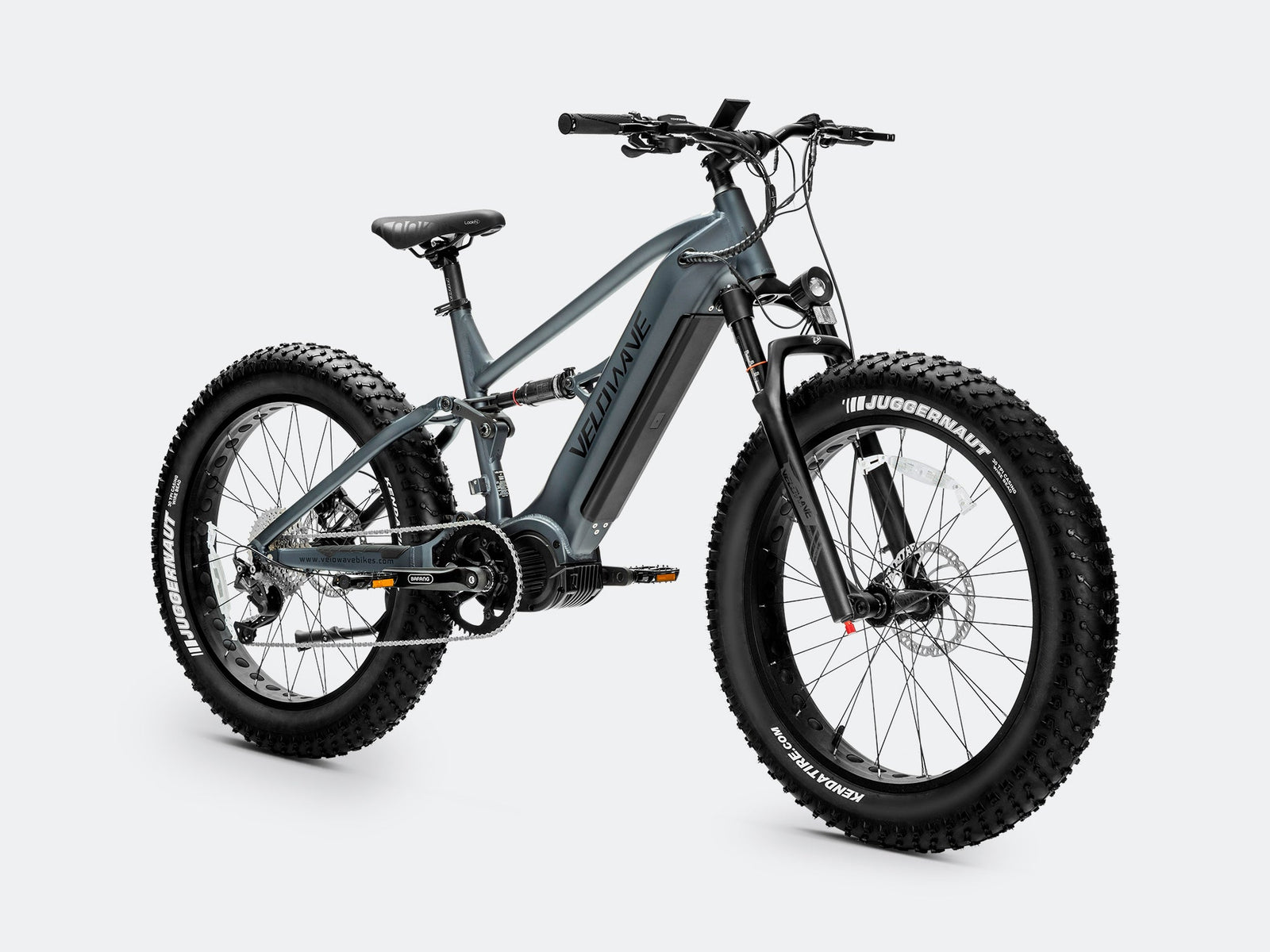

Unlock the freedom to conquer any terrain with the Brawny Electric Bike and redefine your limits with every ride. Crafted from lightweight aluminum alloy, the Brawny features a sleek frame with integrated front and rear suspension, offering 139mm of plush travel. It’s designed to absorb bumps and smooth out rough terrain, ensuring a comfortable and controlled ride.
Features
General
- Classes: Class 3 (Ebikes can go up to 37mph with pedal assistance)
- Max Speed: Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
- Range: Up to 85 Miles* on PAS, 60 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F (30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on temperature, load, wind speed, road conditions, and other factors.)
Frameset
- Frame: 6061 Aluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 139 mm
- Fork: Air Suspension Fork with 100mm travel, with lockout

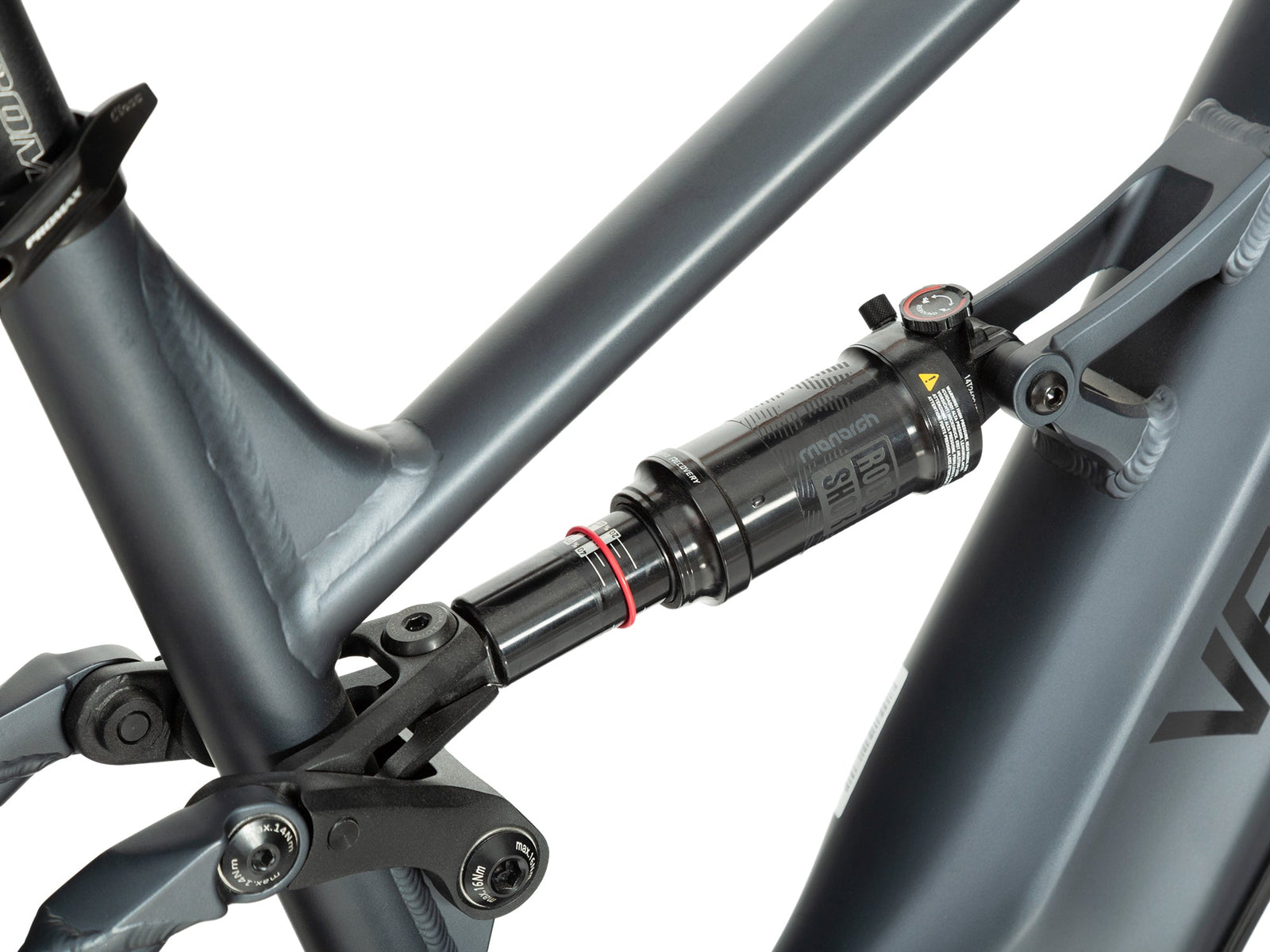

- Rear Suspension: Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment
Wheels
- Rim: Aluminum 26" 36H Front & Rear
- Front Wheel Spokes: Black Stainless 13G x 255/257 mm, Front and Rear
- Hubs: Disc Nutted Front / Rear Axles
- Tire: Kenda 26" x 4.8" Fat Tires
- Tire Size: 26" x 4.8"
E-system

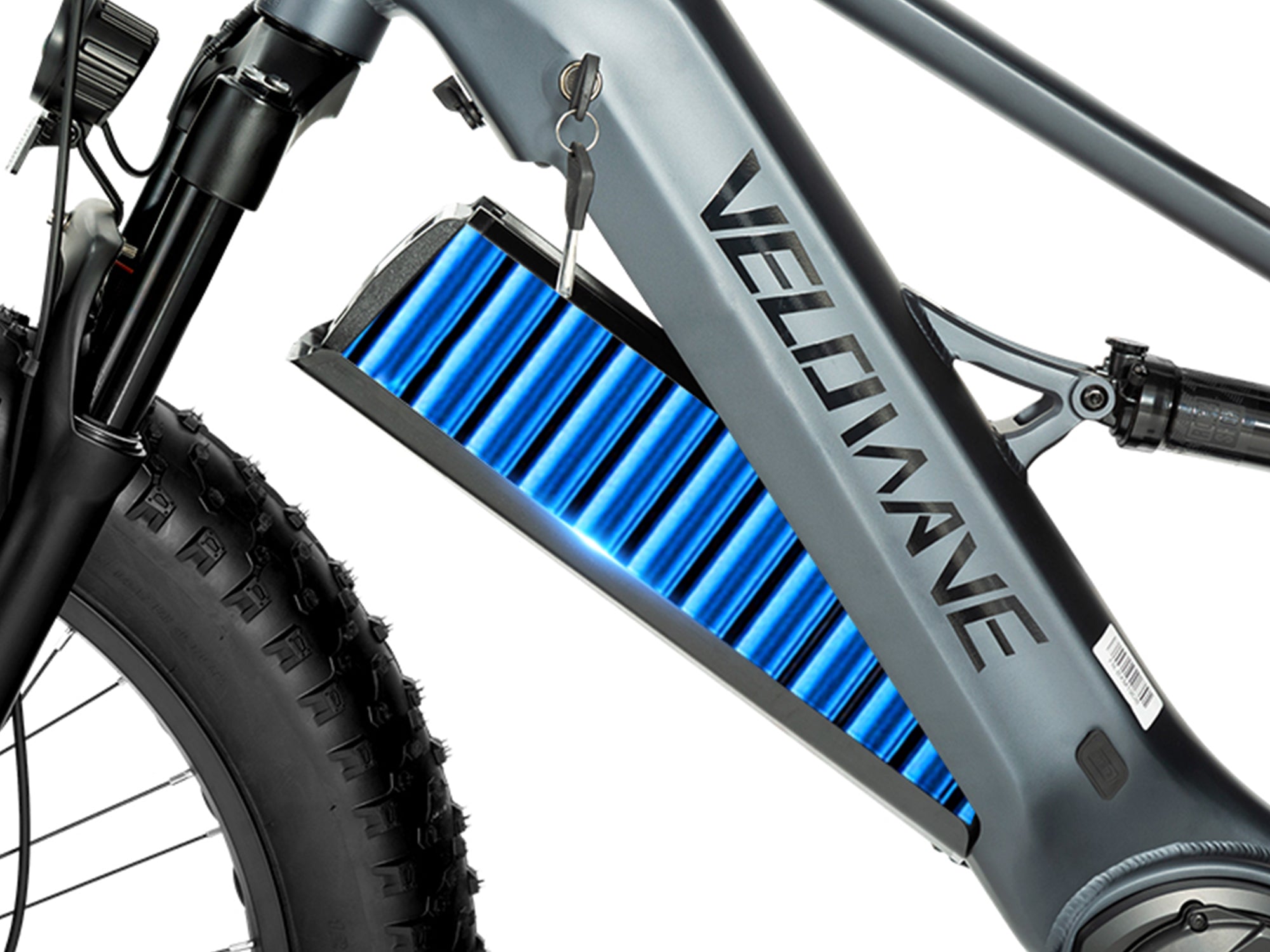

- Battery: Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
- Charger: 48V 3 Amp Charger, Approx. 7 Hour Charging

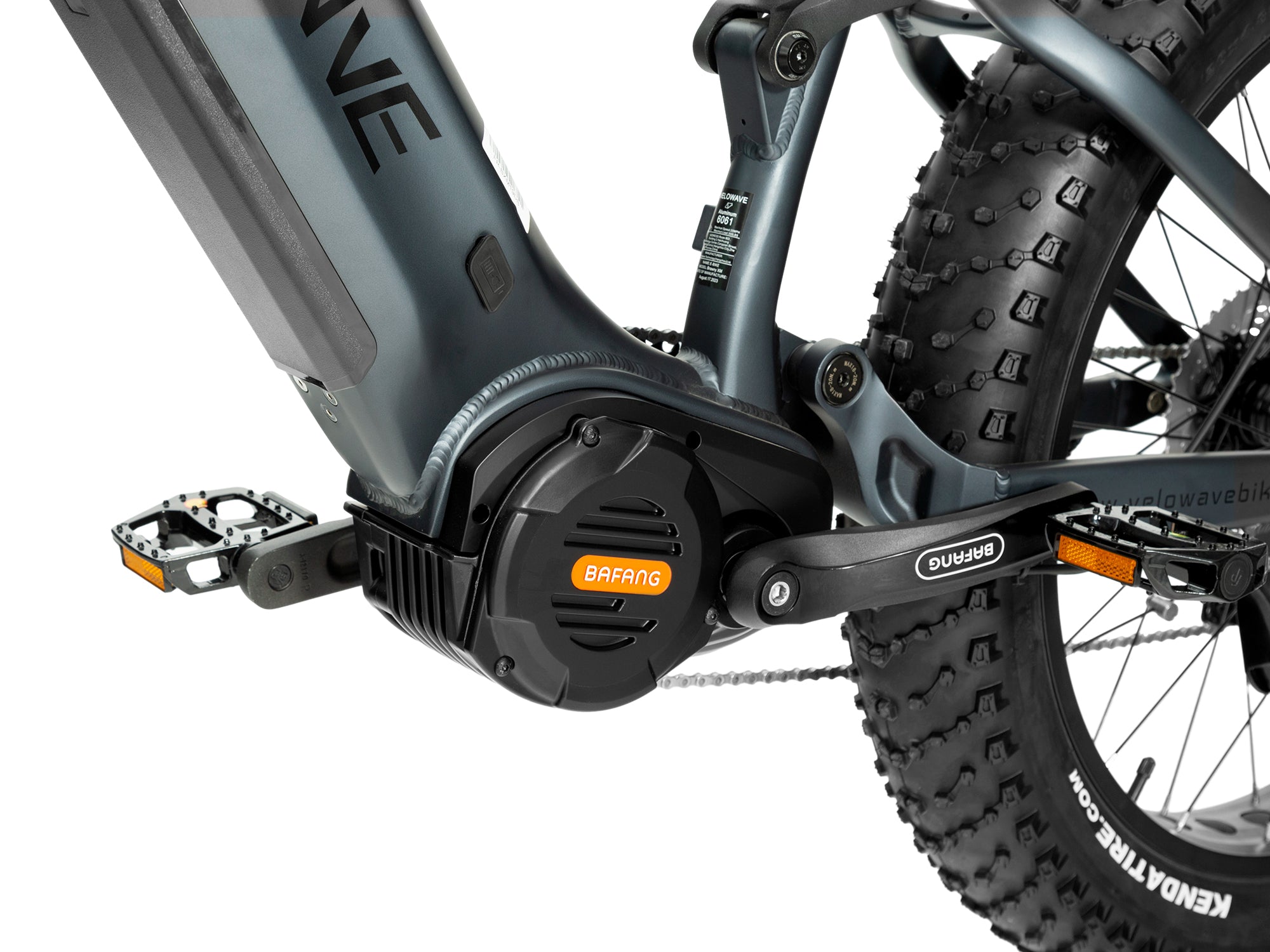

- Motor: 1000W (Peak 1200W), 160Nm
- Display: TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist: 6 Levels
- Sensor: Torque Sensor
- Throttle: Throttle on demand - Throttle from a complete stop
- Light: Front 48V LED Light 80 LUX; Rear Blinking Light
Drivetrain
- Shifter: Shimano 10-Speed Thumb Shift
- Pedal Assist: 6 Levels
- Crankset: 170mm w/ 48T
- Freewheel: Shimano 11-42T, 10-Speed CASSETTE
- Pedals: Alloy Platform
- Chain: KMC 134 Link, 10-Speed

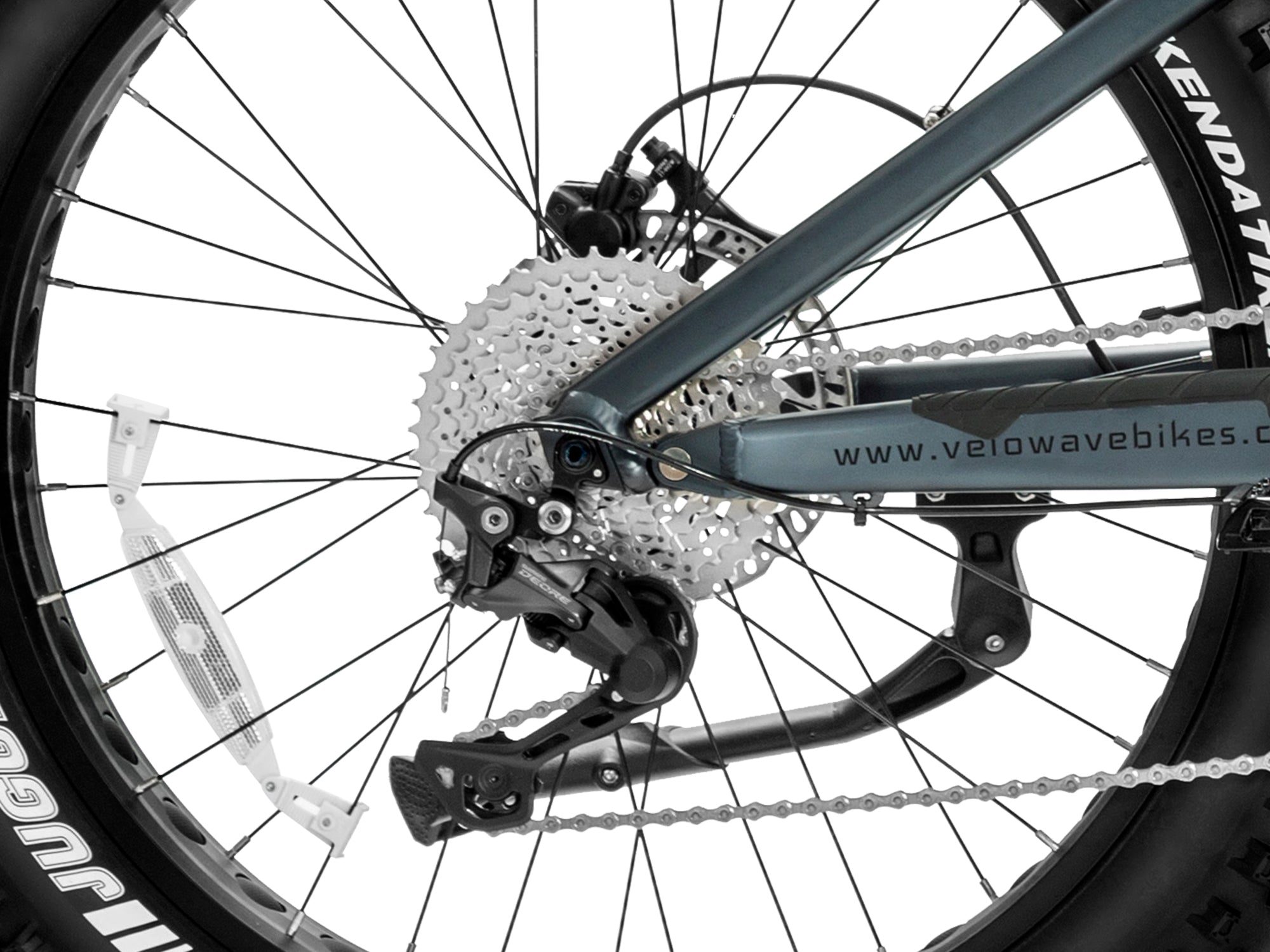

- Rear Derailleur: Shimano Deore RD-M4120 10-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, φ31.6x300mm
- Seat Clamp: φ38.1mm Quick Release
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, Height: 60mm, Rise: 6°
- Handlebar: Aluminum Ø31.8mm, Width 740mm
- Headset: Sealed Bearing Headset
- Grips: Ergonomic Comfort
- Brakes: Tektro Hydraulic Disc Brakes w/180mm discs, with power-cut-off function
- Kickstand: Included, Rear Mount
- Fenders: Not Included
- Rear Rack: Not Included
Weight
- Net Weight: 82 lbs / 37.2 kg (including battery)
- Gross Weight: 111 lbs / 50.5 kg
- Battery Weight: 11.4 lbs / 5.15 kg
- Max Load Capacity: 385 lbs / 175 kg (including cargo)
Size
- Product Size: 2100 x 1158 x 745 mm
- Packing Size: 1700 x 350 x 900 mm
Specs & Size
| Size | 17'' | 19'' |
| Total Length | 2087mm | 2100mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 432mm | 483mm |
| Handlebar Height | 1158mm | 1158mm |
| Wheelbase | 1318mm | 1331mm |
| Standover Height | 774mm | 823mm |
| Reach | 469mm | 475mm |
| Seat Height Min/Max | 841mm/1040mm | 890mm/1090mm |
Size Chart
| Frame size | Rider Height | Inseam |
|---|---|---|
| 17" | 5'5" - 6'4" 165 - 192 cm |
31" - 35" 78 - 89 cm |
| 19" | 5'6" - 6'5" 168 - 195 cm |
33" - 36" 80 - 92 cm |
