Forest XM

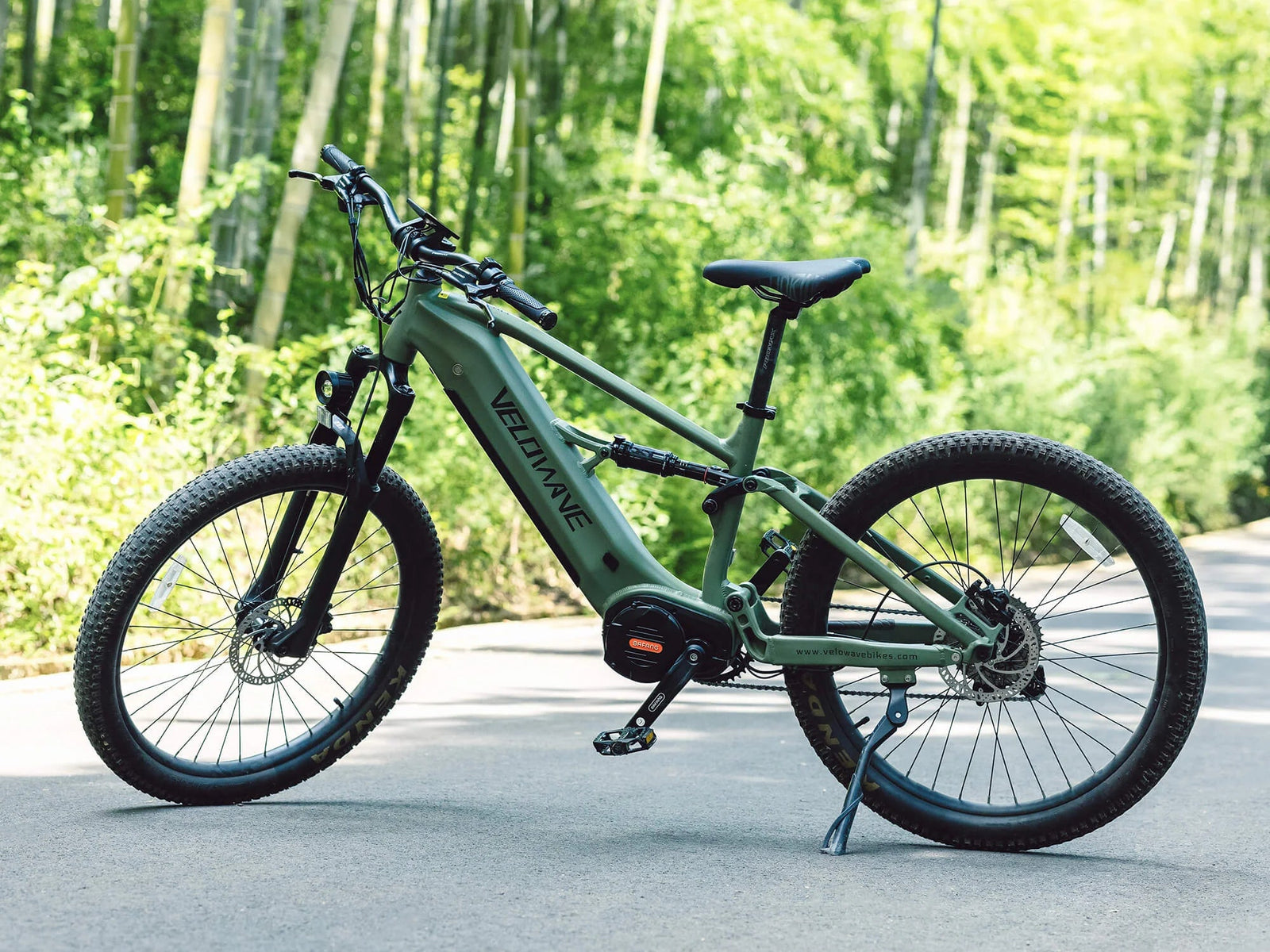

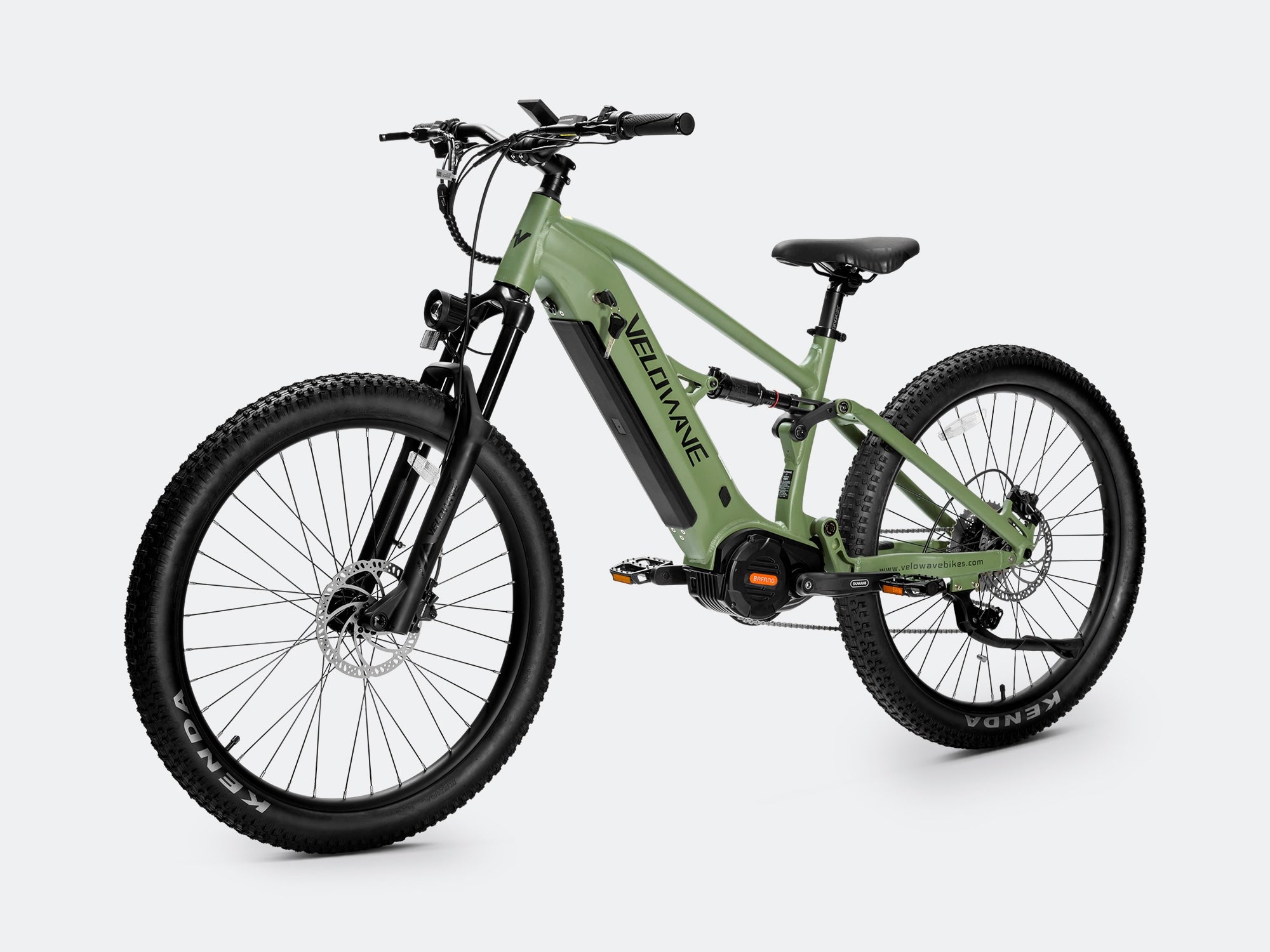

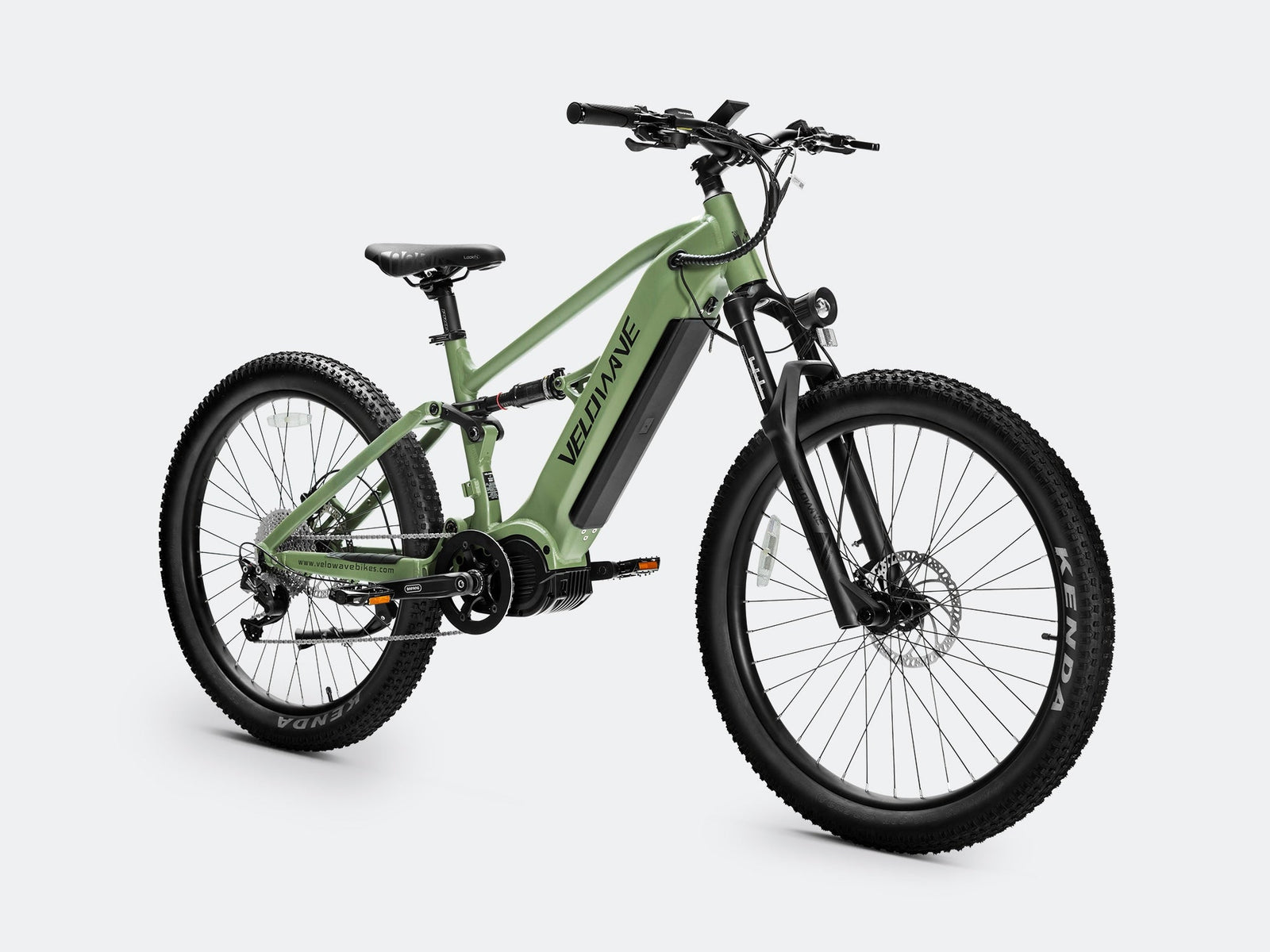

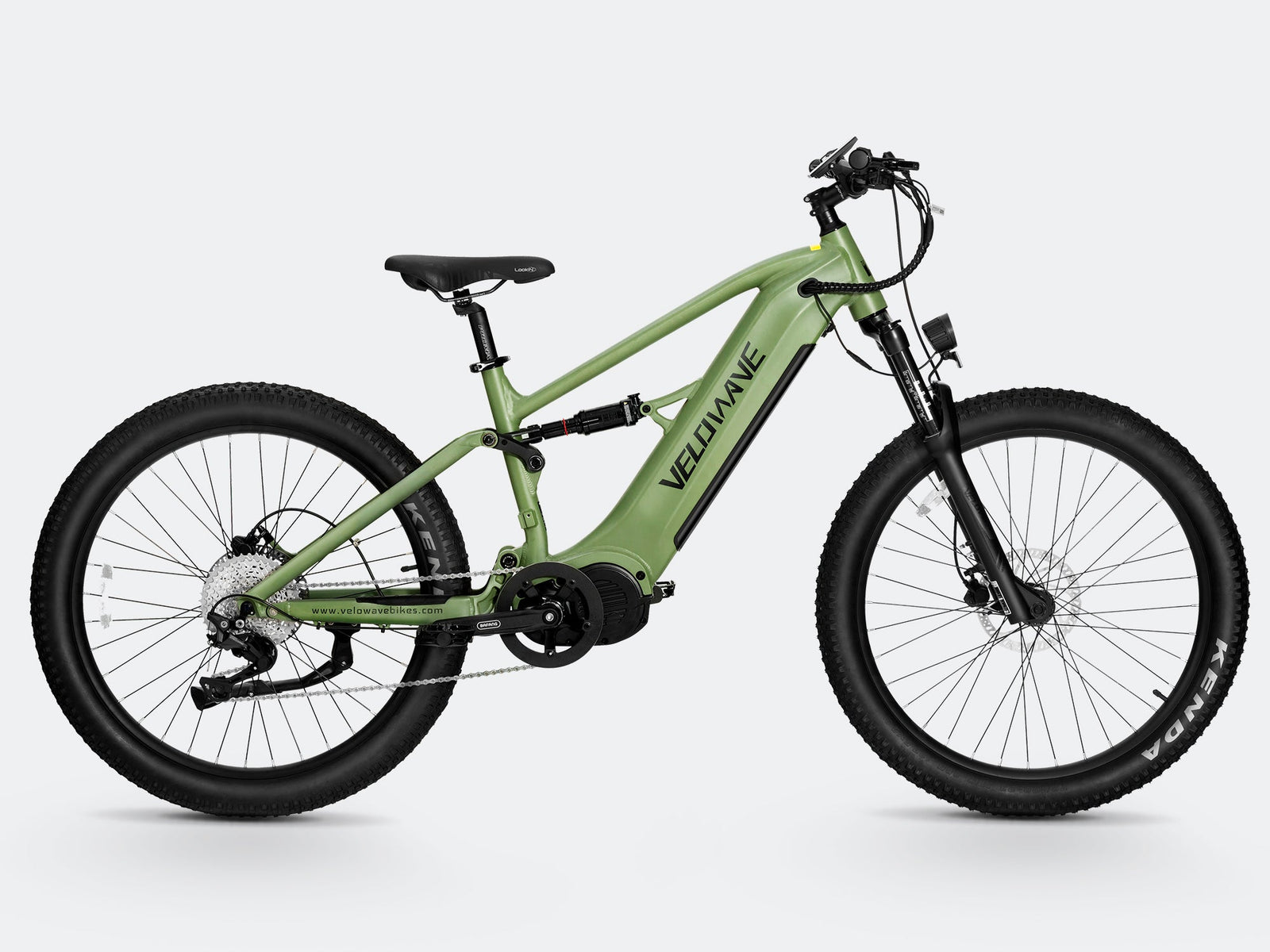

Don't want to bounce high off gravel or potholes on your e-bike, do you? The Forest XM stands out with its robust shock absorbers, ensuring a much smoother and more comfortable riding experience compared to other bikes. Crafted from high-performance 6061 Aluminum Alloy, the Forest XM boasts a sleek design with an integrated battery and advanced front and rear suspension. Perfectly balanced with a frame travel of 133 mm, it provides a smooth, responsive ride over any terrain, combining innovation, performance, and style into one dynamic package.
Features
General
- Max Speed: Up to 37 MPH on Pedal Assist; 20 MPH on Throttle
-
Range: Up to 85 Miles* on PAS, 60 Miles* on Throttle
(Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F (30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on temperature, load, wind speed, road conditions, and other factors.)
Frameset
- Frame: 6061 Aluminum Alloy with Internal Battery, with Front and Rear Suspension, Frame Travel 133 mm
- Fork: Air Suspension Fork with 140mm travel, with lockout

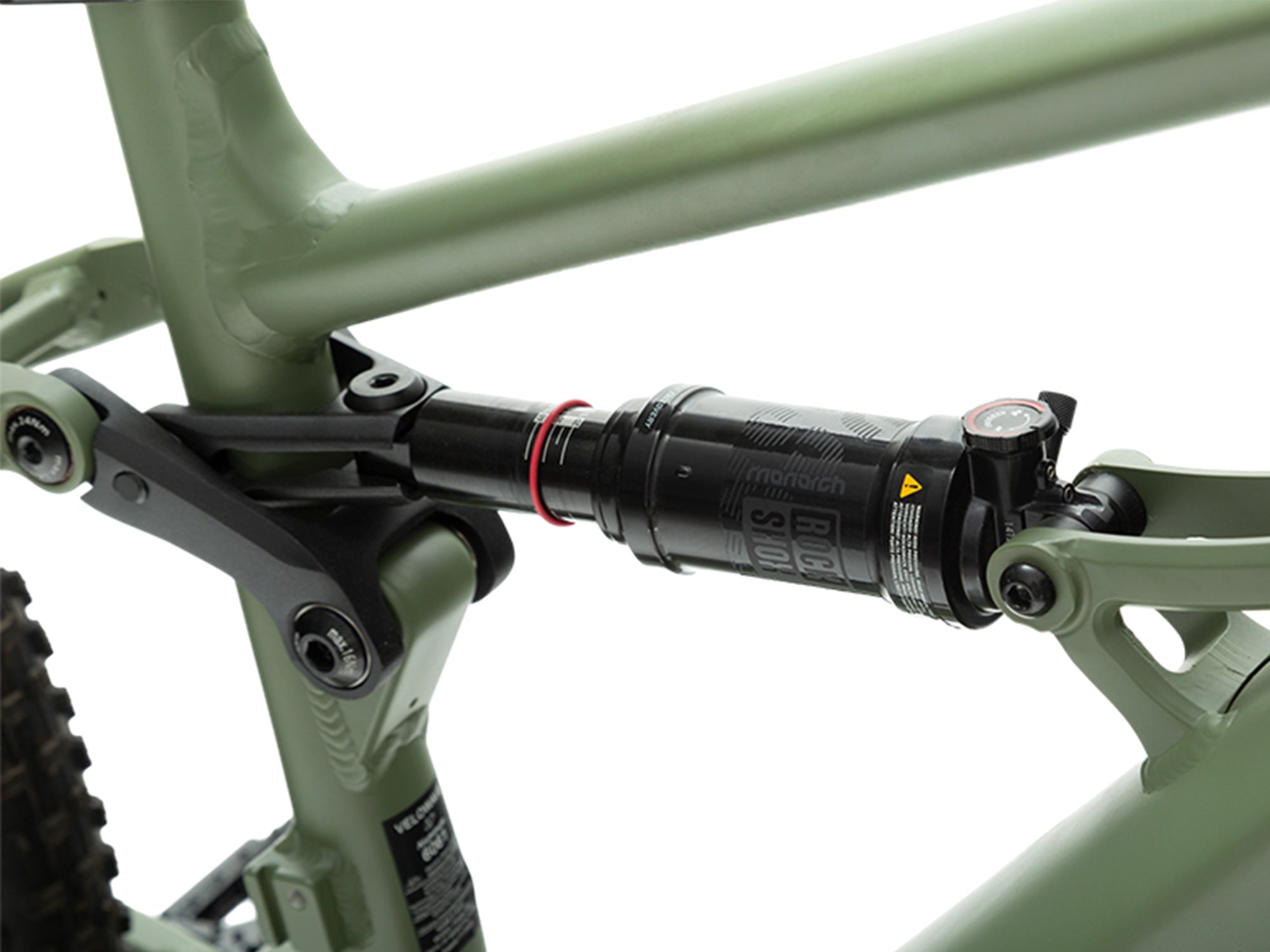

- Rear Suspension: Rockshox RS-MNR-R-C4 184X44 air spring with 44mm travel, with external rebound adjustment
Wheels
- Rim: Aluminum 27.5" 36H Front & Rear
- Front Wheel Spokes: Black Stainless 13G x 269/270 mm, Front and Rear
- Hubs: Disc Nutted Front / Rear Axles
- Tire: Kenda 27.5" x 2.8" Tires
- Tire Size: 27.5" x 2.8"
E-system

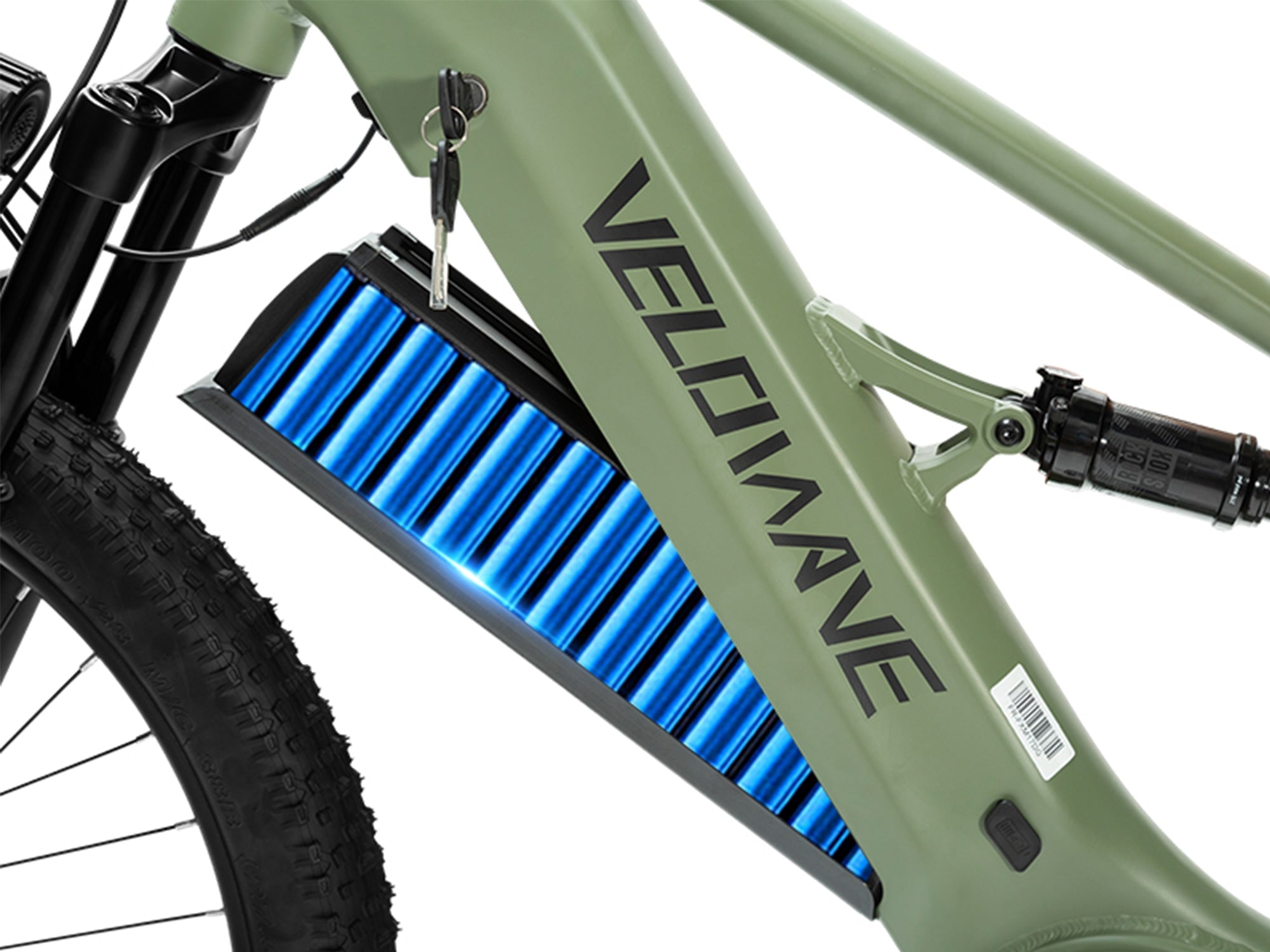

- Battery: Removable Internal Lithium-ion Battery 48V 20Ah (960Wh) with LG cells
- Charger: 48V 3 Amp Charger, Approx. 7 Hour Charging

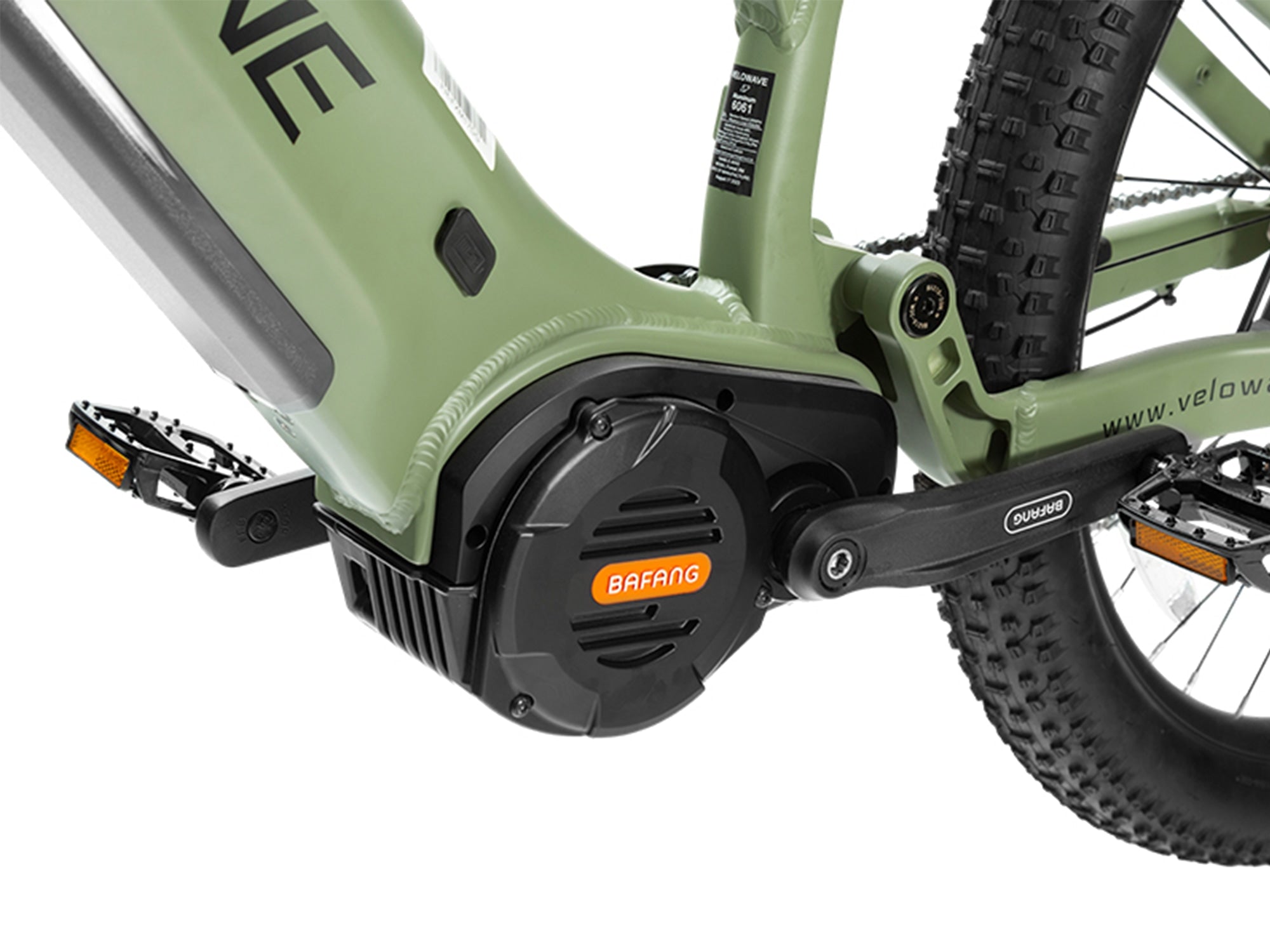

- Motor: 1000W (Peak 1200W), 160Nm

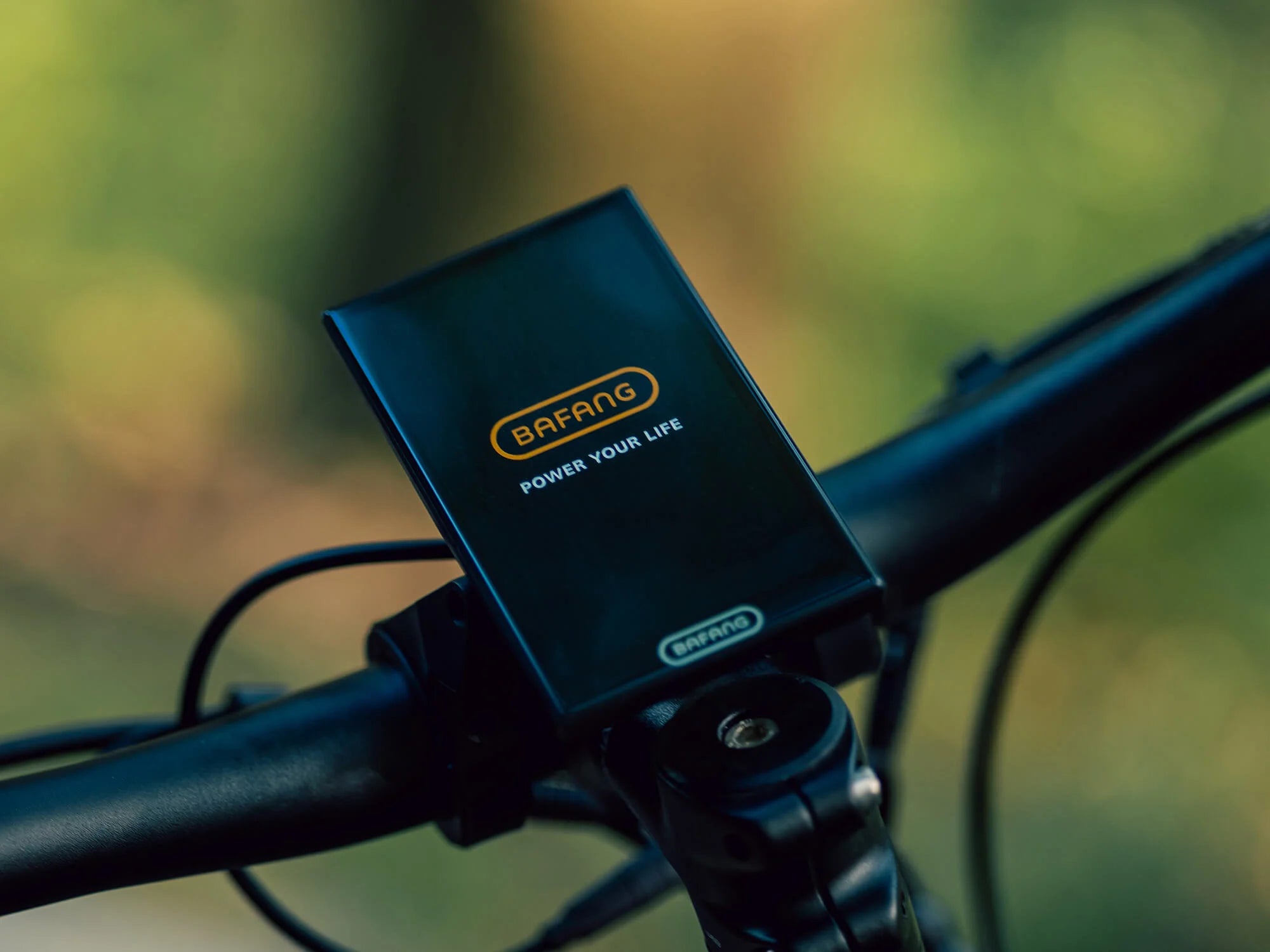

- Display: TFT Smart Easy Read Display with Backlight, Colorful screen
- Pedal Assist: 6 Levels
- Sensor: Torque Sensor
- Throttle: Throttle on demand - Throttle from a complete stop
- Light: Front 48V LED Light 80 LUX; Rear Blinking Light
Drivetrain
- Shifter: Shimano 10-Speed Thumb Shift
- Crankset: 170mm w/ 40 T
- Freewheel: Shimano 11-42T, 10-Speed CASSETTE
- Pedals: Alloy Platform
- Chain: KMC 134 Link, 10-Speed

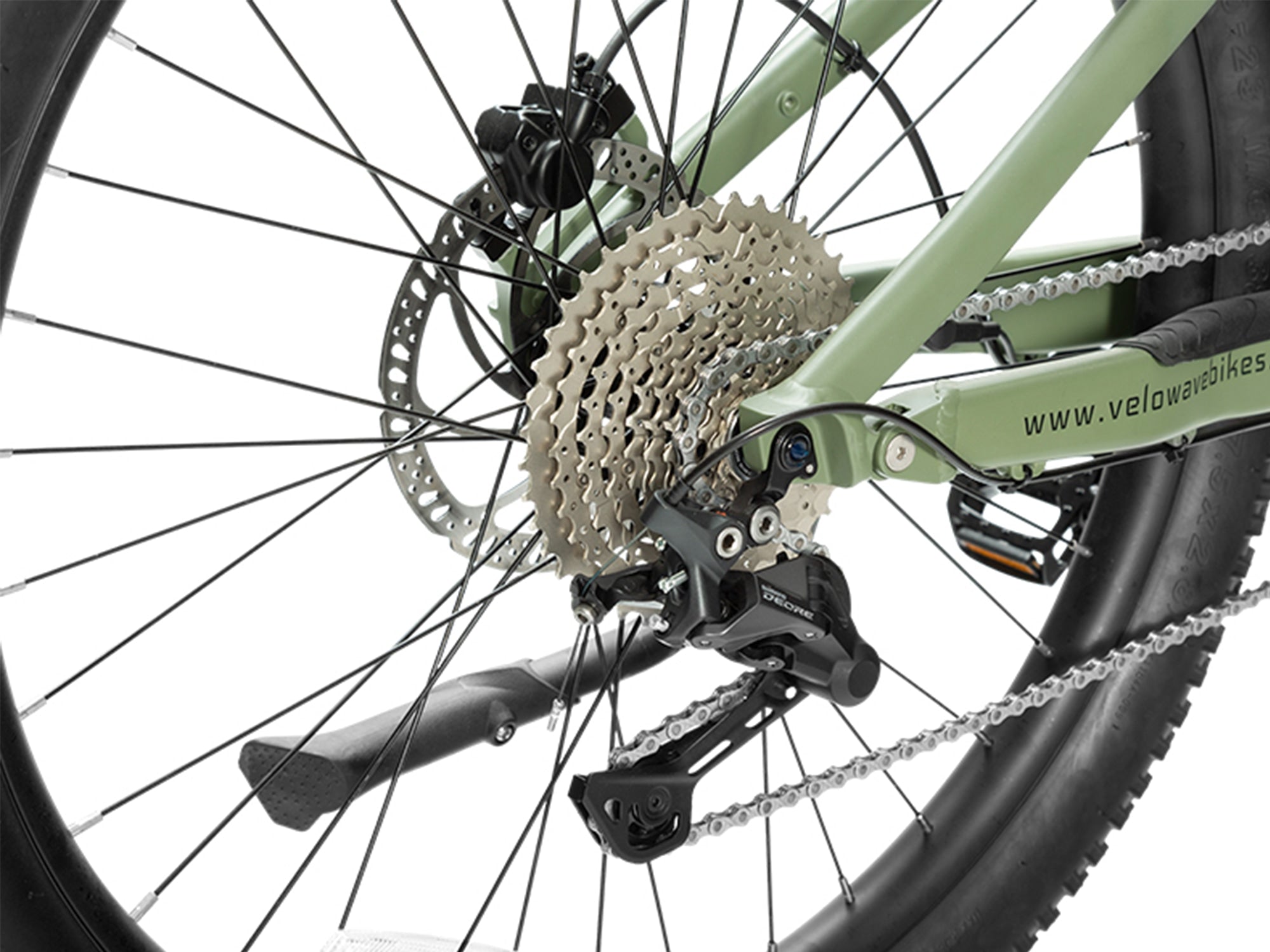

- Rear Derailleur: Shimano Deore RD-M4120 10-Speed
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, φ31.6x300mm
- Seat Clamp: φ38.1mm Quick Release
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 60mm, RISE: 6°
- Handlebar: Aluminum Ø31.8mm, Width 740mm
- Headset: Sealed Bearing Headset
- Grips: Ergonomic Comfort
- Brakes: Tektro Hydraulic Disc Brakes w/180mm discs, with power-cut-off function
- Kickstand: Included, Rear Mount
- Fenders: Not Included
- Rear Rack: Not Included
Weight
- Net Weight: 76 lbs / 34.5 kg (including battery)
- Gross Weight: 103 lbs / 46.5 kg
- Battery Weight: 11.4 lbs / 5.15 kg
- Max Load Capacity: 385 lbs / 175 kg (including cargo)
Size
- Product Size: 2043 x 1135 x 745 mm
- Packing Size: 1700 x 300 x 830 mm
Specs & Size
| Size | 17'' | 19'' |
| Total Length | 2033mm | 2043mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 432mm | 483mm |
| Handlebar Height | 1135mm | 1135mm |
| Wheelbase | 1303mm | 1313mm |
| Standover Height | 754mm | 798mm |
| Reach | 468mm | 478mm |
| Seat Height Min/Max | 866mm/1021mm | 910mm/1065mm |
Size Chart
| Frame size | Rider Height | Inseam |
|---|---|---|
| 17" | 5'5" - 6'4" 165 - 192 cm |
31" - 35" 78 - 89 cm |
| 19" | 5'6" - 6'5" 168 - 195 cm |
33" - 36" 80 - 92 cm |
