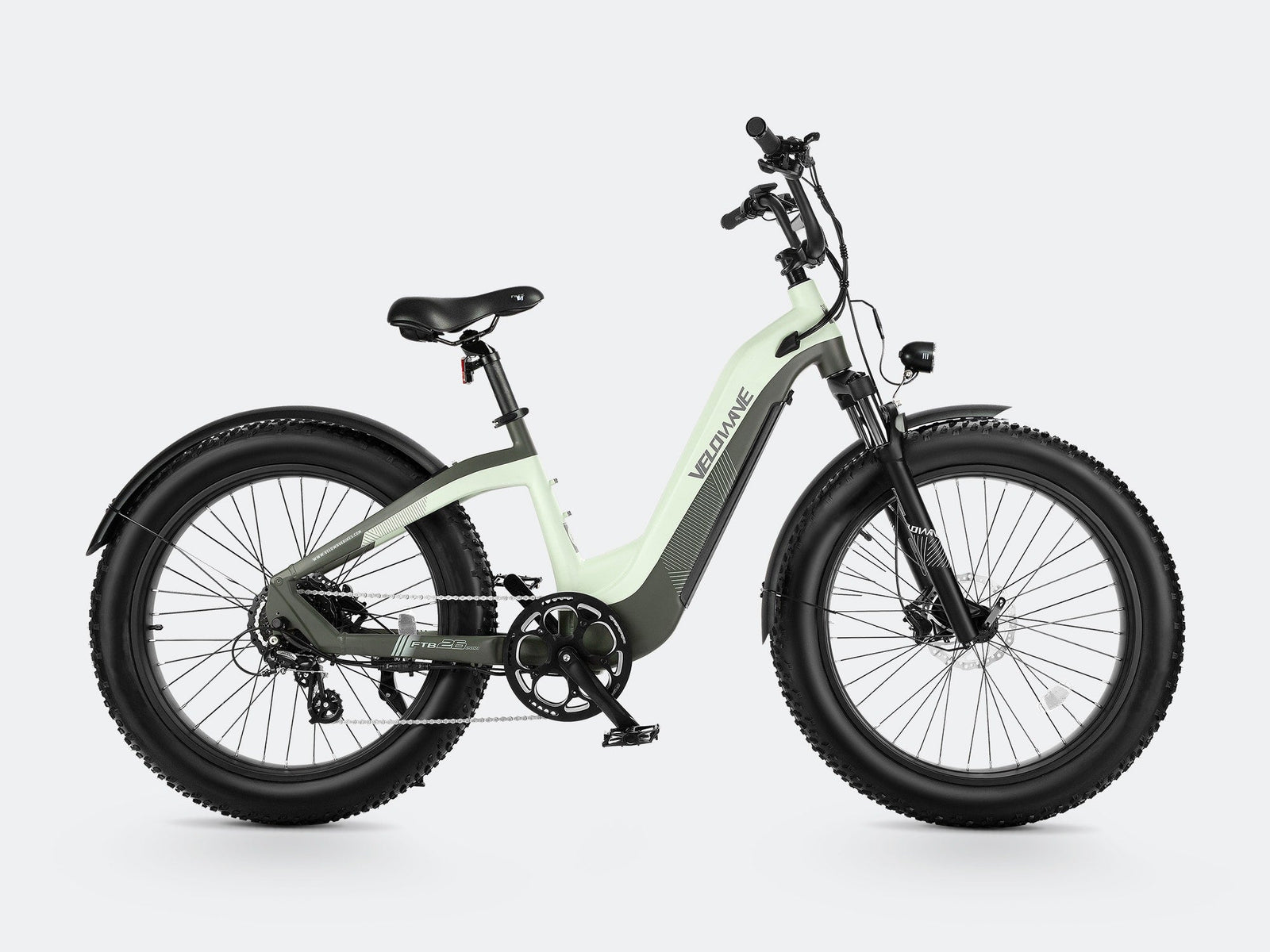

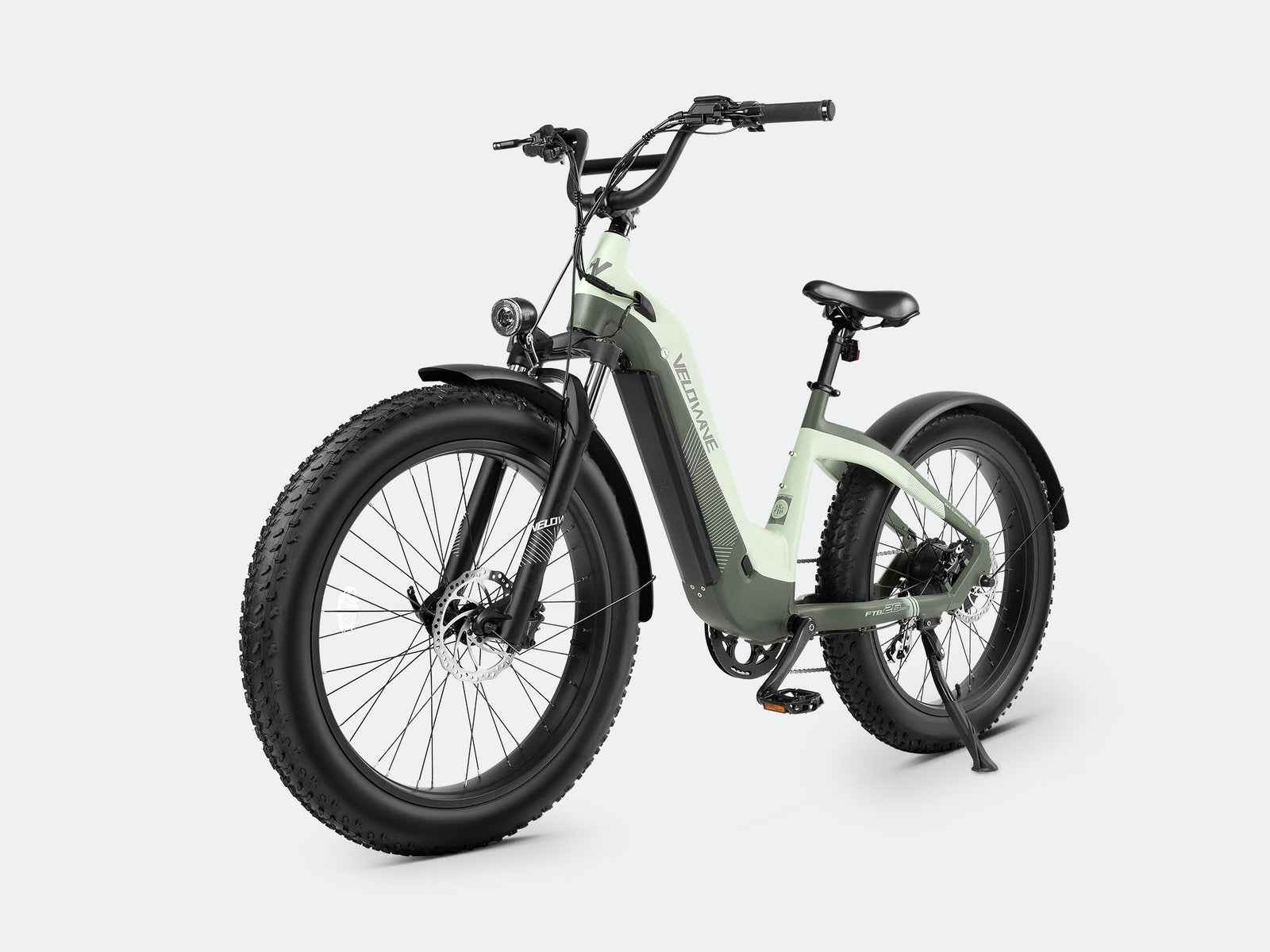

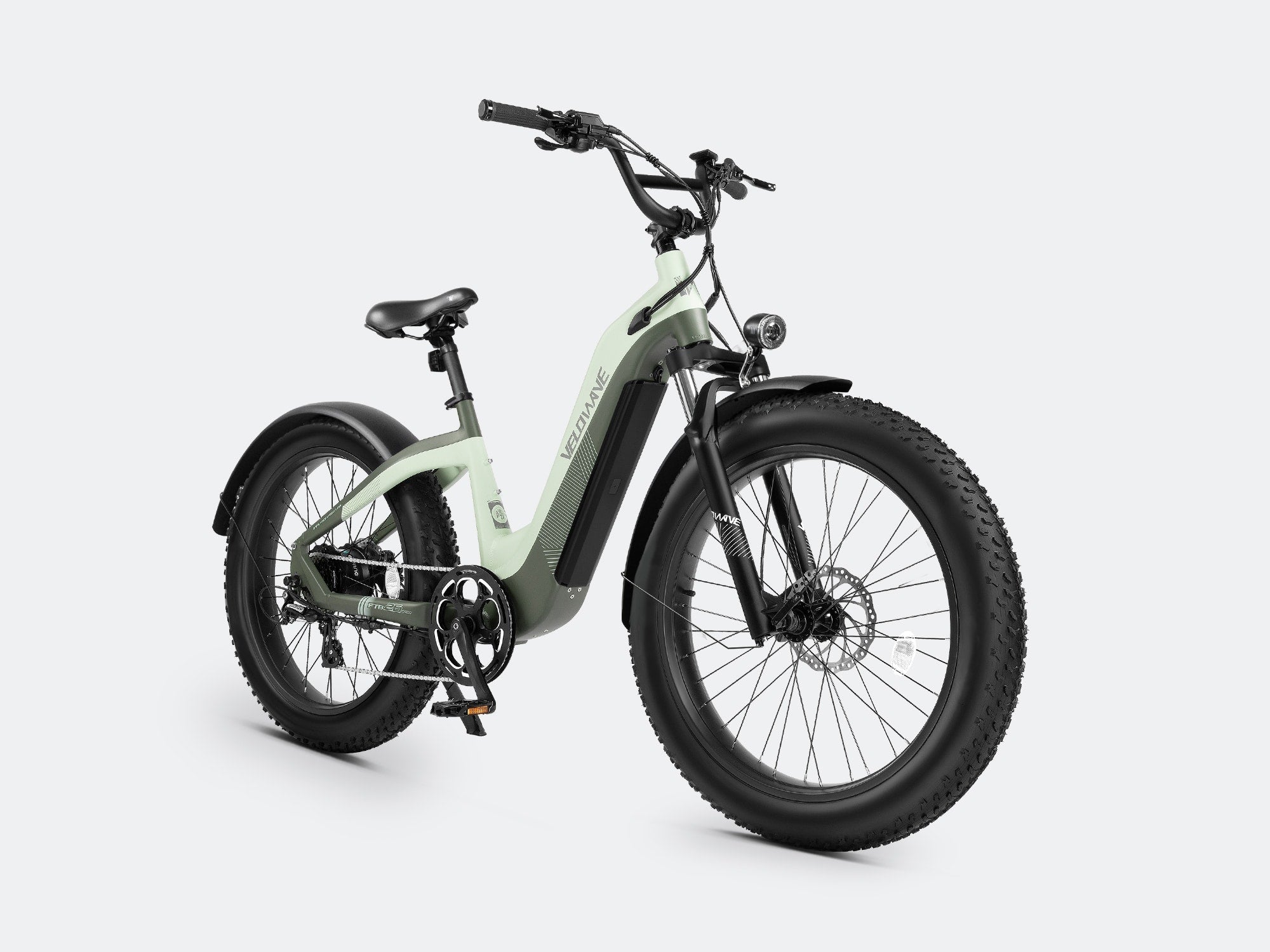

Ranger PRO | Grace 2.0
Get ready to conquer any terrain with Velowave's high-end model - the fat tire off-road E-Bike. With its fat tires that offer puncture-resistant and stability for riders, this E-Bike is designed to take on even the most challenging trails. Experience the ultimate thrill of riding with a powerful 750W BAFANG motor and a 48V 20Ah LG battery on this cutting-edge E-Bike!
Features
General
- Classes: Class 3 (Ebikes can go up to 28mph with pedal assistance)
- Max Speed: 28MPH by pedal, 20MPH by throttle
- Range: 56-120 miles by Pedal; 56+ miles by Throttle (Calculation based on rider's weight of 75kg. Range varies according to road condition, weather, rider's weight, etc.)
Frameset
- Frame: 6061 Aluminium, Removable Battery, Internal Routing
- Fork: Hydraulic Suspension Fork
Wheels
- Rim Material: Aluminum
- Rim Size: 26 x 3.0
- Front Wheel Spokes: 13K x 243
- Rear Wheel Spokes: 12K x 198
- Tire: CST Fat Tires
- Tire Size: 26" x 4.0"
E-system
- Battery: 48V 20Ah, 960Wh, LG 21700 Cells
- Charger: Input 100-240V~, 2.8A (Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
- Motor: BAFANG Geared Hub Motor, Rated 750W, Peak 1000W, Max Torque 80NM
- Controller: 48V 25A Peak
- Display: Multifunctional Color-Screen Display
- Pedal Assist: Torque Sensor
- Throttle: Thumb Throttle
- Front Light: 48V 10W LED Light
Drivetrain
- Shifter: Shimano, 7-Speed
- Rear Derailleur: Shimano, Long Cage
- Crank & Chainring: 52T, 170mm Alloy Crank
- Freewheel: 7-Speed
- Pedal: Alloy Platform Pedals
Components
- Saddle: Comfortable Wide Saddle
- Handlebar: Alloy, 750mm width
- Grips: Nylon Lock-on
- Brakes: Front & Rear Hydraulic Disc Brakes
- Brake Rotor: 180mm, 1.9mm thick
- Kickstand: Side Kickstand
- Seatpost: Forged Alloy, Ø30.4*350mm
- Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, Height: 40mm, Rise: 0°
- Handlebar: Aluminum Ø31.8mm, Width 730mm
Weight
- Net Weight: 38.5kg
- Gross Weight: 50.5kg
- Battery Weight: 5.15kg
- Weight Limit: 150kg (330lb) Payload Capacity
Size
- Product Size: 2100 x 690 x 1158mm
- Packing Size: 1590 x 330 x 880mm
Specs & Size
| Frame Size | Standard (mm) |
| Handlebar Height | 1230mm |
| Reach | 420mm |
| Head Tube Length | 175mm |
| Seat Tube Length | 457mm |
| Standover Height | 375mm |
| Wheelbase | 1205mm |
| Total Length | 1940mm |
| Seat Height Min/Max | 880/1060mm |
Size Chart
| Size | Rider Height |
|---|---|
| 17.7" 45cm |
5’5" - 6’5" 165 - 192cm |
